Hole Depth

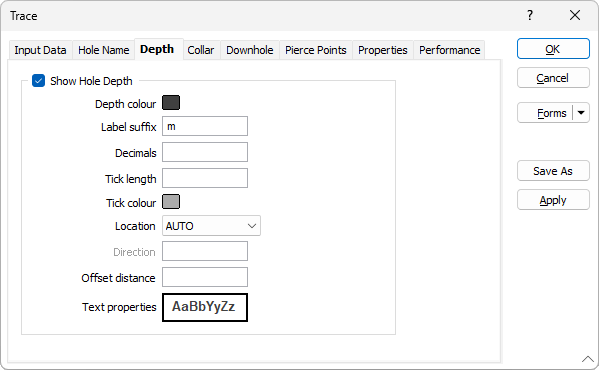

Select the Show Hole Depth check box option in the Hole Depth tab, if you want to display the hole depth at intervals along the drillhole trace.

Depth colour

Double-click in this box to select the colour to be used to display the Hole Depth label.

Label suffix

Optionally, enter any additional text to be displayed at the end of the Hole Depth value.

Decimals

Enter the number of decimal places that will be used when displaying depth values.

Tick length

Ticks are small line segments that extend perpendicular to a trace. They relate trace information to a point on the trace. By default, ticks are joined to the trace.

Enter the length of the depth tick mark (in grid units).

Tick colour

Select a colour to be used for the depth tick mark.

Label Location

Specify a location and position for the Hole depth annotation. The position can be based on either: an AUTO setting, a CENTRE setting, or an entered DIRECTION.

Label Direction

If you specify a Location of DIRECTION, you need to enter a bearing.

Label Offset distance

Optionally specify the offset distance that will be used when labelling the depth of the hole. The offset distance is specified in grid units.

If a bottom label (CENTRE) has been defined in addition to a hole depth label, the function will automatically prevent these two labels from overlapping. Entering an offset value allows you to further adjust the position of the hole depth label.

Text Properties

Double-click on the Text Properties Preview box to select a font and set text properties.
