Hole Name

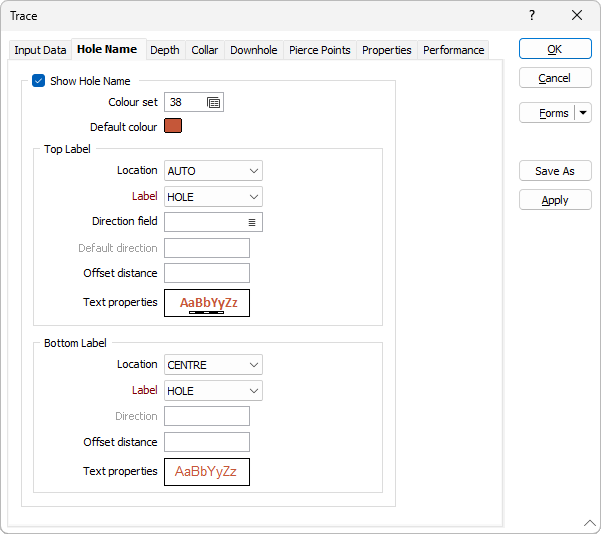

Use the options provided on the Hole Name tab to specify whether and how hole names are displayed.
Show hole name
Select this option to display the hole name for each drillhole trace.
Colour set
Double click (F3) to select the set that will be used to control the hole annotation colour. The colour set maps colours to text strings or numeric ranges. This determines the colour for each value in the colour field. Right click (F4) to create or edit a colour set.
Default colour
Double click (F3) to select the hole annotation colour to be used when a colour set is not defined, or when the value in the colour field is not mapped in the colour set.
Top Label
Location
Specify a location and position for the Hole name annotation. This can be at the TOP and/or BOTTOM of the trace, with the position based on either: an AUTO setting, a CENTRE setting, or an entered DIRECTION.
Label
Select a field containing the values that will be used to label the top of the holes.
Direction field
If the Location of the TOP label is set to AUTO or DIRECTION, the direction of the TOP label can be determined by the values in a Direction field which defines an additional rotation (positive or negative value in degrees).

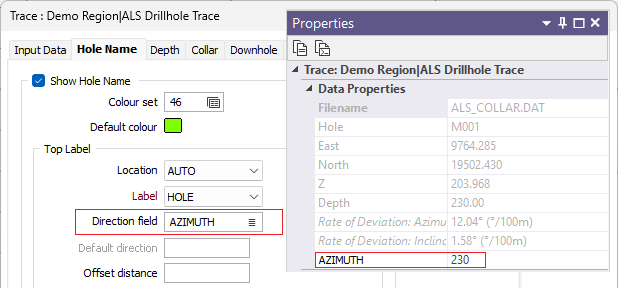

When a collar is selected in Vizex, the value in the Direction field is editable in the Properties Pane:
If the Direction field is blank in DIRECTION mode, the Default direction is used instead and defaults to zero. If the Direction field is blank in AUTO mode, auto direction is applied.
Offset distance
Specify the offset distance that will be used when labelling the top of the hole. The offset distance is specified in grid units.
Text Properties
Double-click on the Text Properties Preview box to select a font and set text properties.
Bottom Label
Location
Specify a location and position for the Hole name annotation. This can be at the TOP and/or BOTTOM of the trace, with the position based on either: an AUTO setting, a CENTRE setting, or an entered DIRECTION.
Label
Select a field containing the values that will be used to label the bottom of the holes.
Direction
This input is disabled when Location is set to AUTO. If you have set Location as DIRECTION, enter a positive or negative value in degrees that defines the rotation of the label.
Offset distance
Specify the offset distance that will be used when labelling the bottom of the hole. The offset distance is specified in grid units.
Text Properties
Double-click on the Text Properties Preview box to select a font and set text properties.
