Round

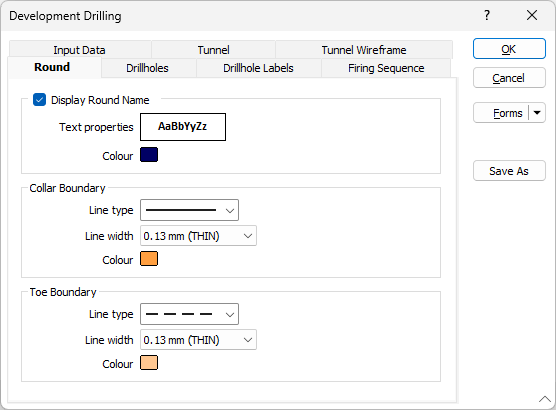

On the Round tab of the Development Drilling form, specify the display characteristics of the Collar and Toe boundaries.

Display Round Name

Select the Display Round Name check box to display a label of the heading round name in your development drilling design.

Text Properties

Double-click on the Text Properties Preview box to select a font and set text properties for the labels.

Colour

Double-click to select a colour for the labels.

Collar Boundary

Set the display characteristics of the Collar boundary.

Line type

Select a line type. A preview of each line type is shown in the drop-down list. A variety of solid, dotted, and dashed line styles are available for selection.

Note: Extended line styles such as double lines are not compatible with 2D plots (they will render as a solid line) and will only display properly in Vizex and 3D Vizex plots (and screenshots). Extended line styles are displayed in blue in the Line Type drop down.

Line width

Select a (THIN, MEDIUM, THICK, or custom) line width from the drop-down list. An extensive selection of custom widths (in millimetres) are available for selection.

Boundary colour

Double-click on the colour icon, to select a colour for the Collar boundary.

Toe Boundary

Set the display characteristics of the Toe boundary.

Line type

Select a line type. A preview of each line type is shown in the drop-down list. A variety of solid, dotted, and dashed line styles are available for selection.

Note: Extended line styles such as double lines are not compatible with 2D plots (they will render as a solid line) and will only display properly in Vizex and 3D Vizex plots (and screenshots). Extended line styles are displayed in blue in the Line Type drop down.

Line width

Select a (THIN, MEDIUM, THICK, or custom) line width from the drop-down list. An extensive selection of custom widths (in millimetres) are available for selection.

Boundary colour

Double-click on the colour icon, to select a colour for the Toe boundary.
