Layer

On the Home tab or the Vizex tab, in the Layer group: Select Open Layer | Mining | Ring Design to open a Ring Design layer.

The same Display option is available on the Mining tab, in the Production group.

On the Mining | Ring Design tab, in the Layer group:

• Click New to create a new ring design.

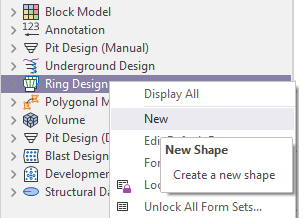

Alternatively, you can right click the layer node in the Vizex Layer Type tree and select New.

• Click Open to load an existing Ring Design into the form for display.

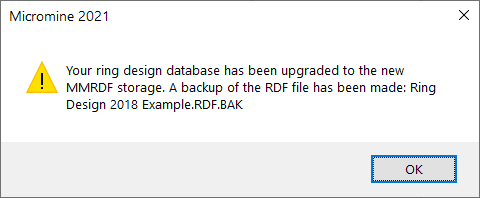

If you open a ring database created in an earlier version of the application, a backup copy will be made before the database is upgraded and an information message will be displayed.

• Click Edit Form to open the form for the selected layer.
