Interacting with Structural Data
When structural data is displayed in Vizex it can be manipulated and edited interactively. Interacting with the data writes back to the file and updates the dip and dip direction fields.
Handlers can be used to rotate the discs. Editable angle annotations are shown during interaction:
-
To move a disc, click on the disc to select it. The disc is rendered with a bold blue outline. You can then click or click and drag the disc to move it (see Interaction modes' below):
-
Red handlers can be used to change the Dip:
-

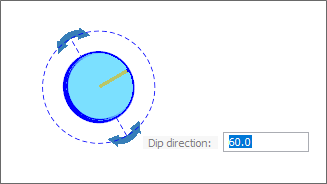

Blue handlers can be used to change the Dip Direction:
Interaction modes
There are two modes of interaction:
-
Hold down and drag the mouse to move/rotate and then release the mouse to complete the interaction.
-
Click to begin the interaction, then move the mouse to move/rotate, then click to complete the interaction.
This mode allows easier use of the input angle fields, because you don't have to hold down the mouse while typing in a value.
Both pressing Escape and a mouse right-click will cancel the current interaction.
You can also:
-
Hold down the CTRL key while rotating to snap rotation angles to 30/45 degree increments.
-
While rotating you can snap to objects in Vizex. This will make the structural data 'point towards' the snapped object.
Preview
When typing in an angle value, you can press ENTER to preview the change in dip or dip direction. You can then either:
-
Press ENTER again to commit the change
-
Modify the value and press ENTER to preview again.
Dip, dip direction and positional information is also shown on the Status bar when rotating.
Right click to Save your changes. Undo/redo is supported while interactively moving or rotating the discs.
