Add Lineations

On the Structural Data tab, in the Create group: Click Add Lineations to add lineations to the displayed data.

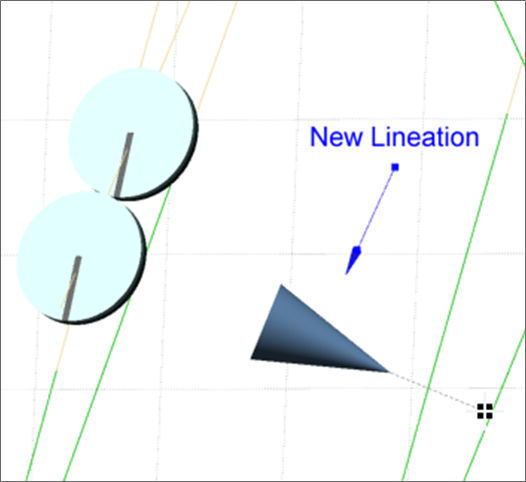

The cursor will change to a cross with a square in the centre. If you click a position, a new lineation will be created and displayed with the position you clicked as the centre. New lineations are created using the lineation length and radius configured in the Structural Data form.

You can make changes to the location, dip direction and dip angle for the new lineation using the methods outlined in Interacting with Structural Data.

A new lineation will be created with every click, as long as the Add Lineations tool is active. To deactivate the tool, right-click in Vizex or click the icon again to toggle it off.

You can delete lineations using the Delete Structural Data tool.
