Dimensions

On the Dimensions tab of the Annotation Set form, you can customise the appearance of the dimension lines you create, specify label text properties, add a prefix or a suffix to the dimension text, and set line styles and angle units.

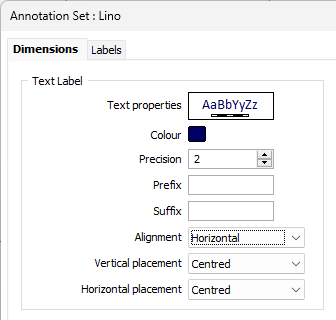

Text Label

Text properties

Double-click on the Text Properties Preview box to select a font and set text properties for the labels.

Colour

Double-click to select a Colour for the text labels.

Precision

For numeric values, specify the level of decimal precision for the displayed measurements.

Prefix and Suffix

If you want to add a prefix or a suffix to the labelled text, enter values in the boxes provided.

Alignment

Select an alignment option for the text label:

Mixed	The label is aligned horizontally (except for diagonal annotation lines which have labels that follow the orientation of the line).
Horizontal	The label is aligned horizontally.
With dimension line	The label is aligned to match the orientation of the dimension line.

Note that angle annotations currently only support a horizontal text alignment.

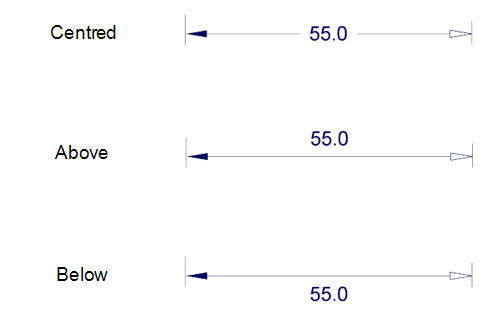

Vertical placement

Choose a vertical placement option for the text label:

Centred	The label is positioned on the line, breaking the line in two.
Above	The label is positioned above the line.
Outside	The label is positioned above or below the line, depending on which side is furthest from the base point of the annotation.
Below	The label is positioned below the line.

Note that, for some annotations, a horizontal text alignment may override an Above or Below vertical placement.

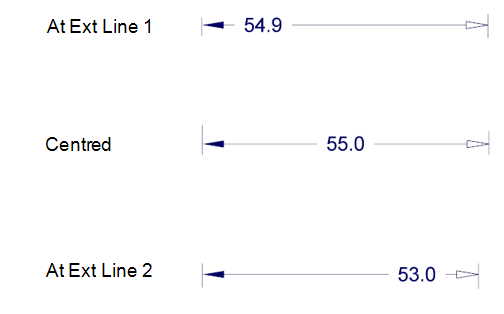

Horizontal placement

Choose a horizontal placement option for the text label:

Centred	The label is centred between the ends of the annotation.
At Ext Line 1	The label is positioned close to the starting point of the annotation.
At Ext Line 2	The label is positioned close to the ending point of the annotation.

Note: If you select an At Extension Line 1 or At Extension Line 2 Horizontal Text Placement and the dimension annotation is too small for the label, the label is moved out on that side.

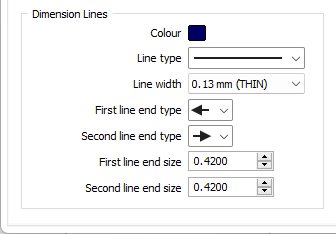

Dimension Lines

Colour

Double-click to select a Colour for the Dimension lines.

Line type

Select a line type. A preview of each line type is shown in the drop-down list. A variety of solid, dotted, and dashed line styles are available for selection.

Line width

Select a (THIN, MEDIUM, THICK, or custom) line width from the drop-down list. An extensive selection of custom widths (in millimetres) are available for selection.

First and Second line end types

Use the drop-down boxes to select First (start-of-line) and Second (end-of-line) line end types for the dimension lines.

First and Second line end size

Use the spin controls to select a size for the First and Second line end size you have selected.

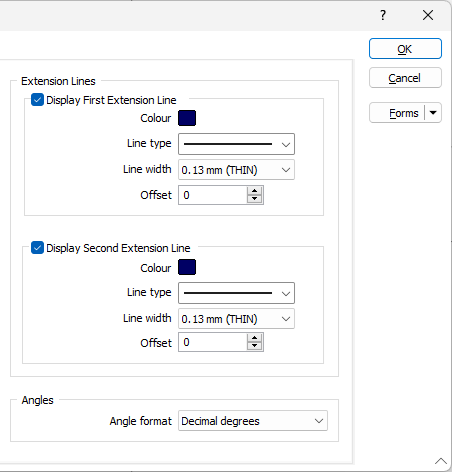

Extension Lines

If you select the Display First Extension Line and Display Second Extension Line check boxes, you can set the following options for the extension lines:

Colour

Double-click to select a Colour for the lines.

Line type

Select a line type. A preview of each line type is shown in the drop-down list. A variety of solid, dotted, and dashed line styles are available for selection.

Line width

Select a (THIN, MEDIUM, THICK, or custom) line width from the drop-down list. An extensive selection of custom widths (in millimetres) are available for selection.

Offset

Use the spin controls to offset the extension lines from their associated dimension lines.

Angles

Use the drop-down box to select the units for Angle measurements:

Labels

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

OK

Once you have set Dimensioning and Labelling options, click OK to apply them.
