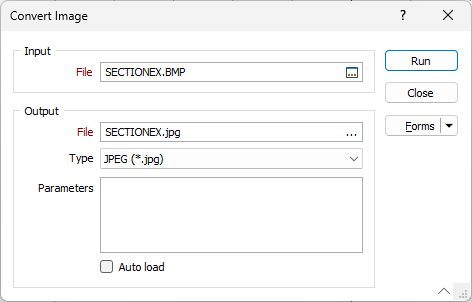

Convert
Input
File
Specify the name of the Input image file. To navigate to the location of the file, press F3 with the cursor in the File box, or click the ellipsis to the right of the File box.
Output
File
Specify the name of the Output image file. To navigate to the location of the file, press F3 with the cursor in the File box, or click the ellipsis to the right of the File box.
Type
Select an Output image file format. The formats that you can convert to will depend on the Input file format.
You can also compress an image to JPEG2000 format. SEE: Compress
Parameters
Depending on the input and output formats you have selected, optional parameters may also be specified. For driver specific parameters use the -co flag and then the parameter of the specific driver, which should be in the form -co "NAME=VALUE". For example:
| -co "TILED=YES" |
You may list multiple -co options.
Auto load
To display the data in Vizex once the file(s) have been imported, select the Auto load option.
Forms
Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set
Run
When you have specified an input file and an output file, selected an output file type and optionally entered parameters, click Run to begin the conversion process.
