Report on the SBM

On the Stratigraphic tab, in the Seam Block Model group: Click Report to report on the area, tonnages and volumes for the seams (and optionally, the waste) in a Seam Block Model file.

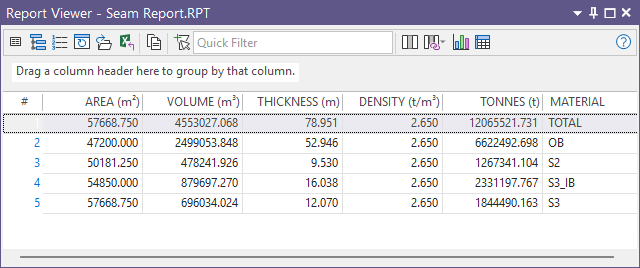

The report will include the Area, Volume, Thickness (Volume/Area), and Tonnage for each seam. Waste can be excluded from the report either by setting an appropriate filter or by selecting “Exclude Waste”. Define waste is a Regular Expression match for the Material field (see Strip Ratio function).
