Grid Thickness of All Seams and Interburden

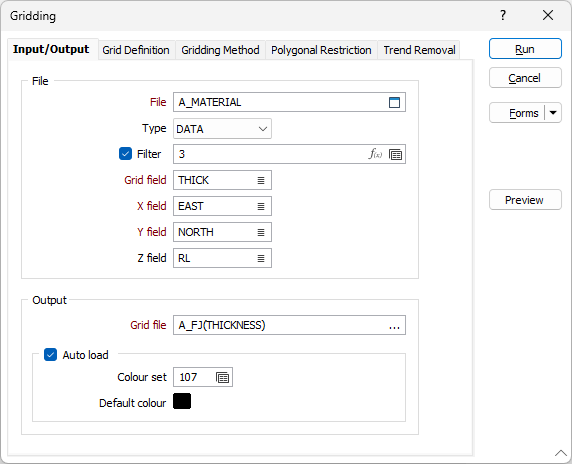

On the Grid / DTM tab, in the Grid Create group: Click New Grid to generate a contour grid surface.

The Grid Limits should be the same as those used for gridding the Reference Seam Elevation.

The Grid field is Thickness and the Thickness semi variogram is used.

One grid is generated for each seam and interburden. The only parameters that change are the filter and the name of the output file.

This repetitive process can (and should) be run using a macro.
