Assign Fault Zones to Reference Seam File

Strings | Utilities | Polygon Assign

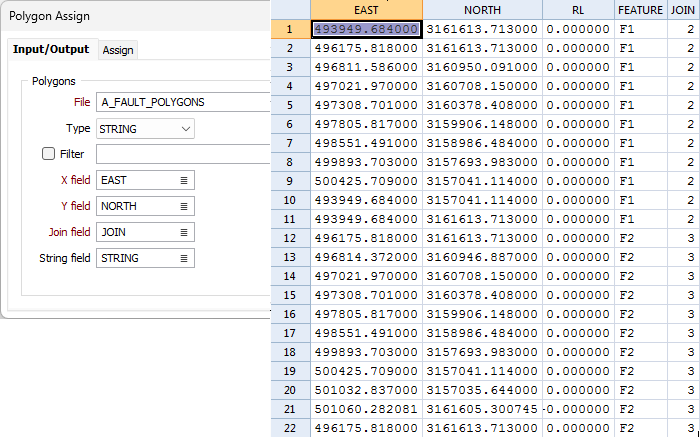

On the Design tab, in the Polygon Tools group: : Select Assign | Polygon Assign to interactively assign values to the points that fall within one or more selected polygons in Vizex.

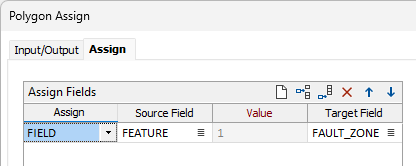

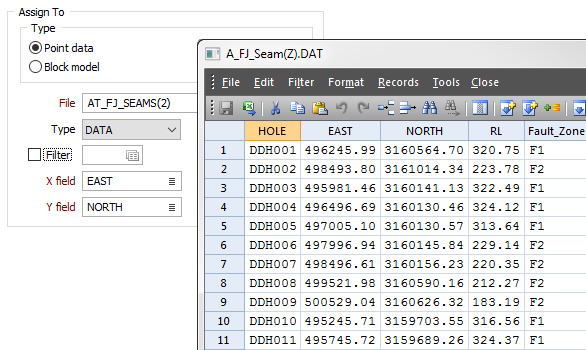

This function does a spatial assign, coding the points dependant on whether they fall in F1 or F2 fault zone. The new FAULT_ZONE field in the Output (FJ Reference Seam) file, is created automatically using the same structure as the equivalent field (FEATURE) in the Input file.
