Define Stratigraphy Hierarchy

On the Stratigraphic tab, in the Stratigraphy group: Click Stratigraphic Hierarchy to define a seam stratigraphic hierarchy that can be applied to the seam block modelling process. A Stratigraphic Hierarchy is a definition of the parent-child seam relationships as well as their order in terms of time.

A simple 2 seam scenario:

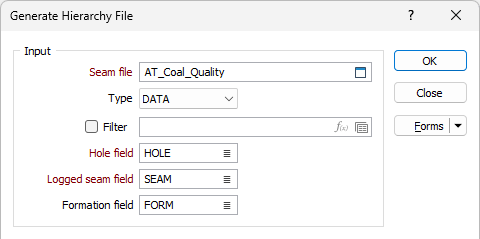

• Input is Seam file created by the Generate Seam File function.
• Output is a template file allowing the user to define all Parent – Child relationships.
