Clip Elevation Grid to Tenement Boundary

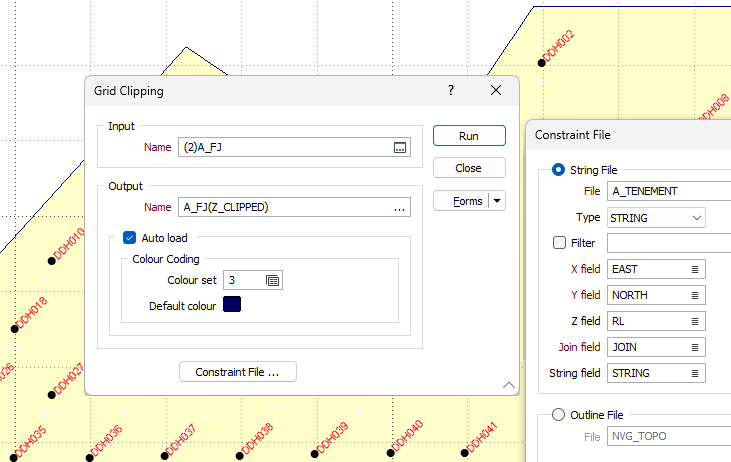

On the Grid / DTM tab, in the Grid Tools group: Click Clip to clip a Grid Surface (defined in an input Micromine Grid Surface file) based on the strings in a String file, or the outlines in an Outline file, and write the result to a new Micromine Grid Surface file.

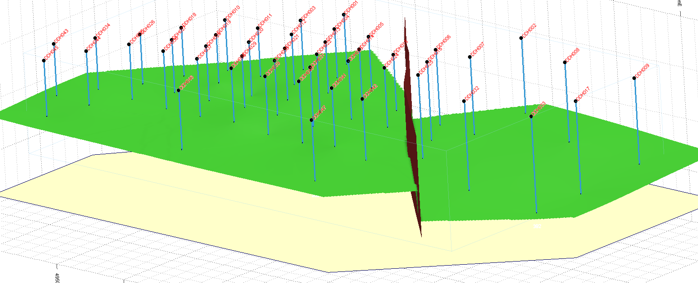

The grid can now be clipped to the Lease (or tenement) boundary.

This grid will be used to create the Seam Block Model. The Thickness grids, we are about to create, will not need to be clipped because the extents of the SBM are controlled by the Reference Grid.
