Survey File

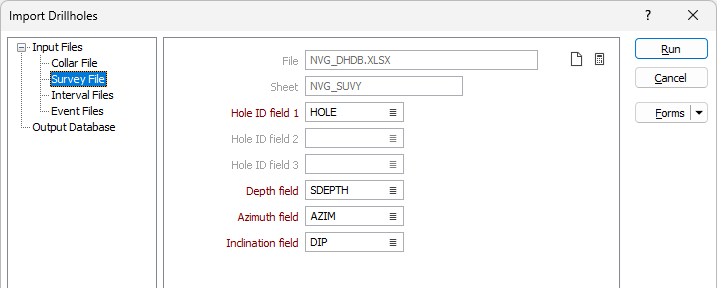

The Survey File tab of the Import Drillholes form is used to configure the Survey file for the import where added to the form.
Information in the Survey file selected on the Input Files tab (such as the Hole ID and Depth fields) will be autofilled to the fields on the Survey File tab where available.
You can use the Clear button to clear the contents of the fields on the tab. The Calculate button will attempt to autofill the fields based on the information in the corresponding file.
Hole ID field
Where required, double-click to select the name of the field that contains an identifier for each hole. Only one Hole ID field is available for Survey files.
Depth field
Double-click to select the name of the field that contains the total depth of each drillhole in the survey.
Azimuth and Inclination
Azimuth and Inclination values are stored in the Survey file. Double click to select the fields that contain the Azimuth and Inclination information in the Survey.
Use the Interval Files tab of the form to configure the details of any Interval file for the import.
Run
To begin the import process, click the Run button. If the specified output file already exists, you will be given the option of overwriting the file, or appending data to the file.
