MapGIS Points & Lines

On the File tab, in the Import group: Click MapGIS Points or MapGIS Lines to import data from a MapGIS point (.WAT) file or a MapGIS line (.WAL) file.

The Input file type and the default Output file type in the form, will depend upon the option you have selected.

MapGIS is a GIS package developed by the Zondy Cyber Group and is widely used in China.

You can also export data to a MapGIS file format, import other GIS file formats and load MapGIS data directly into Vizex using the Display | GIS form (on the Home tab or the Vizex tab, in the Layer group).

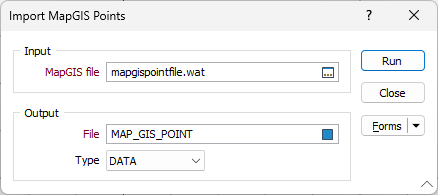

Enter the following parameters in the Import MapGIS form:

MapGIS file

Navigate to the location of the .WAT and .WAL file(s) you want to import.

Output file

Specify an Output file. The type of file you select should be compatible with the type of features (points or lines) being imported.
