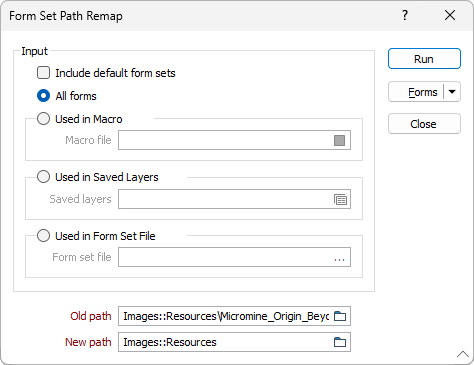

Remap Paths

On the Home tab, in the Forms group: Select Remap Paths to remap the paths for all or a subset of the form sets in the form sets database of the current project.

Alternatively, click Project to open the backstage menu and select Project | Form Sets | Remap Paths.

Input

Choose the form sets you want to remap paths for.

Include default form sets

Select this check box to include default form sets.

Default form sets are provided by the application for every form and will always exist irrespective of the project. Default form sets also include system form sets for such things as colour palettes, coordinate system definitions and plot layouts, etc.

All forms

By default, all the forms in the project's form sets database are remapped.

Used in Macro

Select this option to restrict the remap process to all the form sets referenced in a macro. Click on the Select icon to select a Macro file.

Used in Saved Layers

Select this option to restrict the remap process to all the form sets referenced in one or more saved Vizex layers. Click on the forms icon to select the Saved layer(s).

Used in Form Set File

Select this option to restrict the remap process to all the form sets referenced in an exported form set file (*.mmsetx). Click on the ellipsis to select a Form Set file.

Old Path/New Path

Specify the Old form set path (defaults to the current project folder) and the New path that will replace the Old path.
