Display

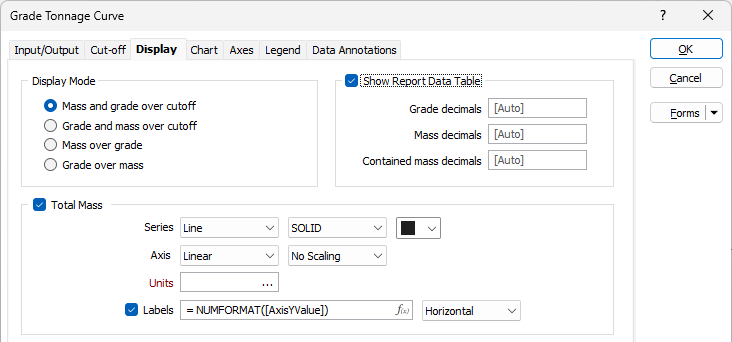

On the Display tab of the Grade Tonnage Curve form, you can select options that determine the layout, the cutoff points, and the scale of the chart:

Display Mode

You can choose from four display modes that determine which data is shown on which (x, y, y2) axis of the chart, and how the Series type is displayed.

Use the Advanced options on the Axes tab to set the decimal format of the values shown on each axis.

Mass and grade over cutoff. Cutoffs are listed on the x-axis, mass on the y-axis, and average grade on the secondary y-axis.
Grade and mass over cutoff. Cutoffs are listed on the x-axis, average grade on the y-axis, and mass on the secondary y-axis.
Mass over grade. Mass is listed on the y-axis, average grade on the x-axis. Each point can be labelled with its cutoff value.
Grade over mass. Average grade is listed on the y-axis, mass on the x-axis. Each point can be labelled with its cutoff value.

Show Report Data Table

Select this check box to show a report data table on the chart.

Decimals

Set the number of decimals to display for Grade, Mass and Contained Mass values.

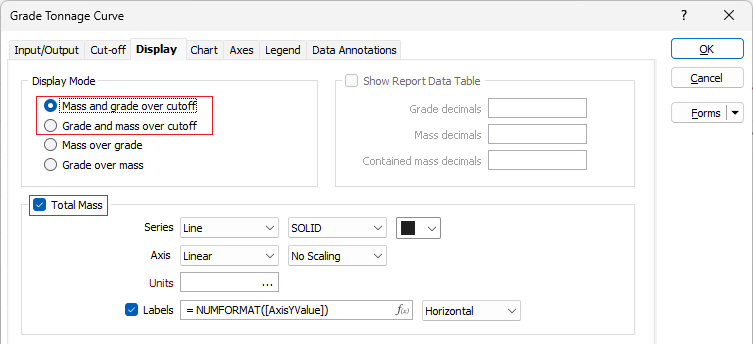

Total Mass

Toggle this check box to show or hide Total Mass on the chart. This option is only visible/applicable when either of the first two display mode options are selected (when cutoffs are displayed on the x-axis):

The following options are enabled for Total Mass unless you have chosen Grade over Mass as the Display Mode. See Grade (below).

Series type

Select a Series type which determines how the series of data points are shown on the chart.

Axis units

Choose the units of Mass.

Axis Transform

Choose a transformation option from the drop-down list:

LINEAR When this option is chosen, the actual values in the Graph field are used subject to the settings in Numeric Exceptions.
NATURAL LOG When this option is chosen, the values in the Graph field are converted into their natural logarithm. In this case, the minimum data value specified by the graph minimum must be greater than zero (since the Ln of zero is - infinity).

Axis Scaling

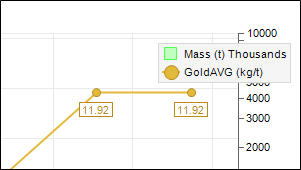

Choose a (Thousands, Millions, Billions) scaling option from the drop-down list or select None. The Mass values on the axis of the chart are accumulated based upon the scaling option you have selected and an appropriate label is appended to the axis title and the legend.

Labels

Select this option to show cutoff labels. An expression can be used to format the label values. Variables pertinent to the chart are available for selection.

Common changes include:

Prescribing the amount of numbers after the decimal.

=NUMFORMAT([AxisYValue], X). X controls the decimal places.

Adding commas to a number.

This depends on your windows locale settings.

Label orientation

Select a Horizontal, Vertical or Diagonal orientation for the labels:

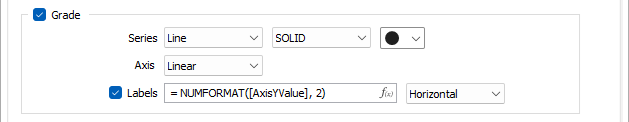

Grade

The following options are enabled unless you have chosen Mass over grade as the Display Mode (see above):

Series type

Select a Series type which determines how the series is shown on the chart.

Axis Transform

Choose a transformation option from the drop-down list:

LINEAR When this option is chosen, the actual values in the Graph field are used subject to the settings in Numeric Exceptions.
NATURAL LOG When this option is chosen, the values in the Graph field are converted into their natural logarithm. In this case, the minimum data value specified by the graph minimum must be greater than zero (since the Ln of zero is - infinity).

Labels

Select this option to show cutoff labels. An expression can be used to format the label values. Variables pertinent to the chart are available for selection.

Label orientation

Select a Horizontal, Vertical or Diagonal orientation for the labels:

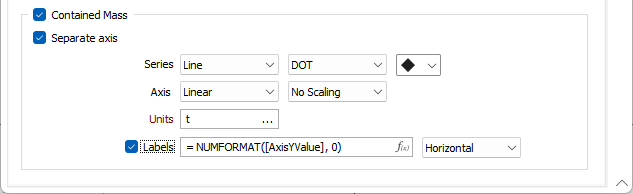

Contained Mass

Select this option to show the element mass on the chart. The option to show on a Separate axis is then enabled.

Axis Units

Choose the units of Element Mass.

Series type

Select a Series type which determines how the series of data points are shown on the chart.

Axis Transform

Choose a transformation option from the drop-down list:

LINEAR When this option is chosen, the actual values in the Graph field are used subject to the settings in Numeric Exceptions.
NATURAL LOG When this option is chosen, the values in the Graph field are converted into their natural logarithm. In this case, the minimum data value specified by the graph minimum must be greater than zero (since the Ln of zero is - infinity).

Axis Scaling

Marker labels

Select this option to show cutoff labels. An expression can be used to format the label values. Variables pertinent to the chart are available for selection.

Label orientation

Select a Horizontal, Vertical or Diagonal orientation for the labels:

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

By design, the Forms button is not available for loaded Vizex layers (i.e. when opening the form set properties of a layer in the Vizex Layer Display pane). In Vizex, the Forms button is only available for new forms opened via the Home tab or the Vizex tab, in the Layer group (or by double-clicking on a form type node in the Vizex Layer Types pane).

Save and Save As

Click the Save button to save the changes you have made to the form set. Click Save As to save your changes as a new form set. Save As will default to the first available form set number.

Reset

Click Reset to clear the form of all values and reset the form to its default state.

Reset Tab

For tabbed forms, select Reset Tab to clear the active tab of all values and reset the tab to its default state - without making any changes to other tabs in the dialog.

Undo and Redo

Click Undo (CTRL + Z) to undo recent changes in the form. After an Undo, click Redo (CTRL + Y) to restore the last change that was undone.

Collapse

Collapse (roll-up) the form to preview a chart, or preview the results of an operation in Vizex, or obtain input values from Vizex, the Property Window, the File Editor, or the Plot Editor.
