Display

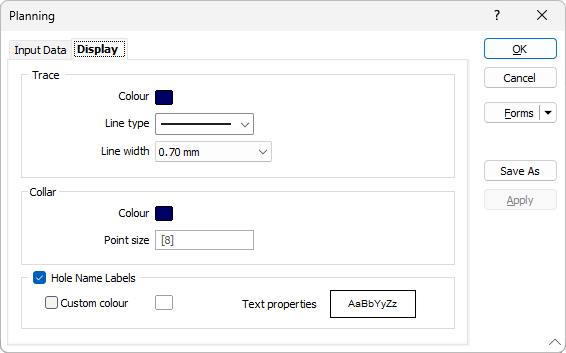

On the Display tab of the Drillhole Planning Shape form, set display characteristics for the trace strings, collars and hole name labels.
Trace
Double-click (F3) to select the colour that will be used when a Colour field or a Colour set is not defined - or when a value in the Colour field is either not valid or is not mapped in the Colour set.
Colour
Double-click (F3) to select a colour for the trace strings.
Line type
Select a line type. A preview of each line type is shown in the drop-down list. A variety of solid, dotted, and dashed line styles are available for selection.
Line width
Select a (THIN, MEDIUM, THICK, or custom) line width from the drop-down list. An extensive selection of custom widths (in millimetres) are available for selection.
Collar
Hole Name Labels
Select this check box to set the colour and text properties of the hole name labels.
Custom Colour
By default, the colour selected for the trace is also applied to the hole name labels. Select this check box to select a custom colour for the labels.
Text Properties
Double-click on the Text Properties Preview box to select a font and set text properties.
