Create Pattern
When you select Finish Plan, the pattern is saved to the Drillhole Planning layer.

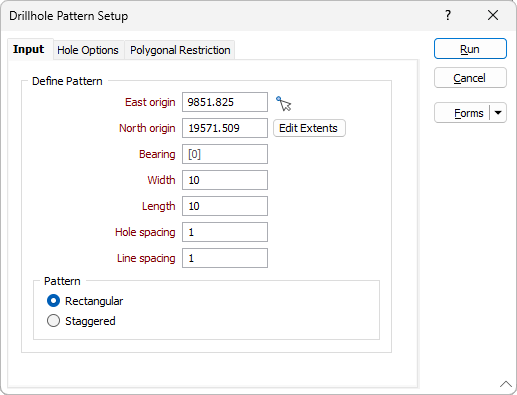

Define Pattern
Click the Edit Extents button to collapse the form and interactively adjust the extents and the orientation of the pattern. The corresponding values in the Define Pattern group of the form will be updated.
Pick point in Vizex
Click the Pick point in Vizex button in the Define Pattern group, to interactively pick the coordinates of the East and North origin. The East and North origin values in the form will be updated.
East and North origin
Enter the East origin and the North origin of the pattern (this point represents the South-West corner of the pattern).
Bearing
Enter a Bearing in a clockwise direction from zero degrees (North) to orient the pattern to the geology or any previous surveys. When looking along the bearing the origin is always in the bottom-left corner, drill lines run from left to right, and each new line is further from the origin, as shown in the diagram below:
Width
Enter the width of the pattern (see diagram above).
Length
Enter the distance from the origin on which to calculate holes. This is measured in the direction of the bearing (see diagram above).
Hole spacing
Define the spacing between the holes along each line.
Line spacing
Define the spacing between the lines in the direction of the origin.
Edit Extents
Click the Edit Extents button to collapse the form and visually adjust the extents of the pattern. Interactively adjusting the extents rectangle in Vizex will update the values in the form.
Pattern
Choose between a Rectangular or a Staggered grid pattern. The Staggered pattern is based on a diamond grid. The spacing distance usually ranges between 100% and 200% of the burden distance.
| Rectangular: |
|
| Staggered: |
|
Forms
Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.
Run
Finally, click Run to run the function.
