Delete Segment

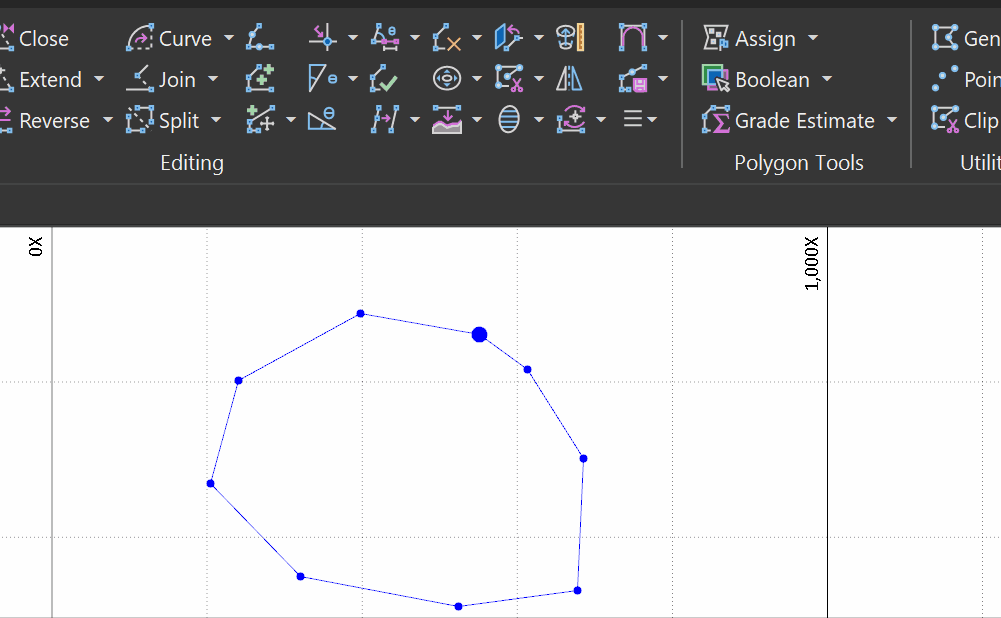

1. On the Design tab, in the Editing group: Select Delete Segment to delete the selected segments of a string.

   To select segments, see: Pick Partial String

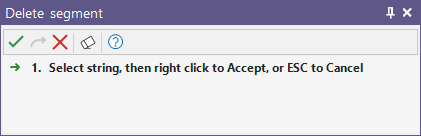

2. If you have not already selected the string segments you want to delete, you will be prompted to select them:

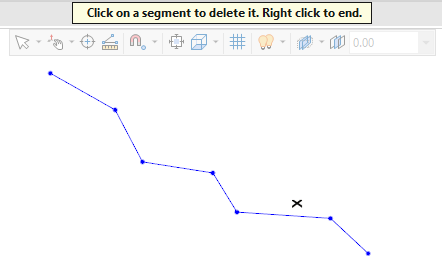

3. The cursor shape changes to a cross. You will be prompted to select the segment you want to delete:

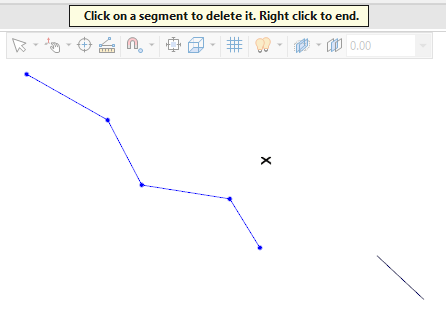

4. Continue to click on further points to delete them.



On the title bar of the application window, you can click Undo to undo the last action.

See Also:

• Delete String

• Delete Point

• Close String
