Stereonet Auto Clustering

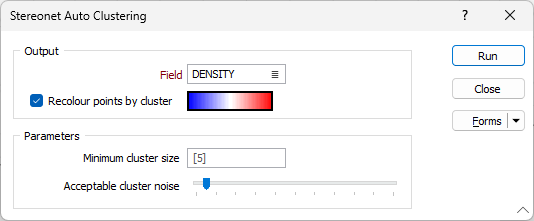

The Stereonet Auto Clustering form is used to configure the automatic clustering of points in the Stereonet based on their density.

Output

Field

Double click (F3) to select the Field representing Density from the Stereonet input file.

Recolour points by cluster

Select this option to recolour the points in the processed clusters and double click (F3) to select a colour palette to use.

Parameters

Minimum Cluster Size

Enter the minimum number of points that must be in each cluster. The default value is 5.

Acceptable cluster noise

Use the slider control between minimum (0) and maximum (100) to configure how much noise can acceptably be produced by the clustering. With maximum noise allowed, you'll notice a lot more smaller clusters amongst the larger ones.
