Output

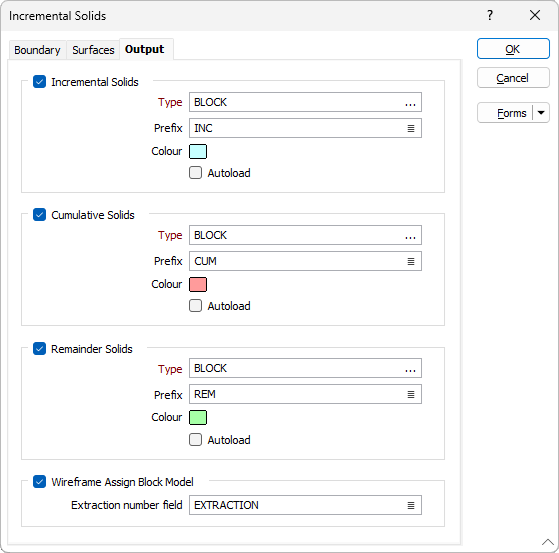

On the Output tab of the Incremental Solids form, choose whether Incremental, Cumulative and Remainder Solids wil be generated as a result of the process.

For each selected type of solid, select a wireframe Type and optionally specify a Prefix. You can choose to auto load the solids in Vizex and apply a display colour.

For more information about solid types, see: Incremental Solids

Wireframe Assign Block Model

If a Block Model was used to calculate the boundary extents, select this check box to perform a Wireframe Assign. Extraction number values can be assigned to the input block model from the generated solids.

Extraction number field

Specify the name of the field that contains extraction numbers. Extraction numbers are unique number assigned to an identifiable “extraction” of which a block forms part.
