Boundary

On the Wireframe tab, in the Operations group: Click Incremental Solids to create incremental, cumulative and/or remainder solids from a list of surfaces clipped to specified bounds and (optionally) topography.

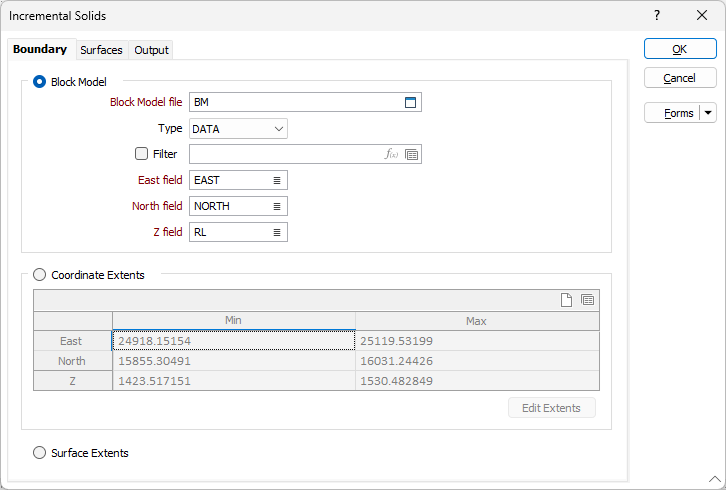

On the Boundary tab of the Incremental Solids form, specify whether a block model, coordinate extents, or surface extents will be used to generate the wireframe block from which incremental solids will be cut.

The Coordinate Extents grid can be used to enter the Easting, Northing and Z values for the wireframe boundary, or click Edit Extents to interactively set the required boundary. See Edit Extents.

Surfaces

Output
