Solid Reconciliation

On the Mining tab, in the Production group: Click Solid Reconciliation to generate overbreak, underbreak and/or common wireframes between a series of solids.

The Solid Reconciliation tool uses wireframes (solid) to generate and reconcile quantities for cut/underbreak, fill/overbreak, and common solids between a sequence of solids to represent the differences between planned and mined material.

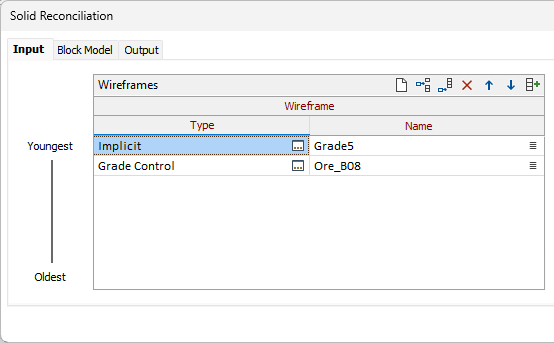

Wireframes

Use the Wireframes grid to select the input wireframes used to generate the reconciliation output wireframes. For each input, select the Type and Name for the wireframe.

Note: If an open input solid is provided, it will be automatically closed. It is however recommended that valid, closed wireframes are provided for the Solid Reconciliation tool.

You can use the options in the toolbar to Manage the rows in the list and add more wireframes listed from First to Last.

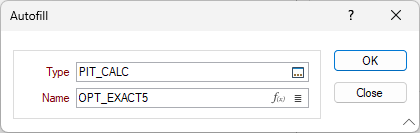

If you click the Autofill the Grid option, the Autofill form is displayed and you can select a wireframe Type and Name to use to automatically populate the Wireframes grid.

Click OK to autofill the grid.

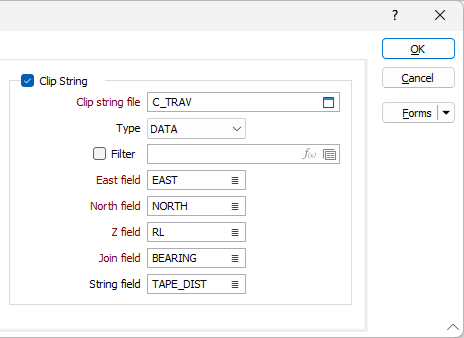

Clip String

Select the Clip String option to specify and define a string file with clipping polygons. If you specify a string, the reference and target will be clipped orthogonal to the plane of best fit for the polygons prior to processing.

Clip string file

Select a file type and double-click (F3) to select the file containing the strings to be clipped. If required, select a filter or create one using the Expression Editor.

Easting and Northing and Z fields

Specify the names of the fields in which Easting, Northing, and (optionally) Z coordinates are stored in the input file.

Join field

Specify the name of the field containing values which define whether data points will be joined by a line i.e. strung. If successive records have the same value in this field and no String field is defined a line will join the points. If a String field is defined, then values in each field in successive records must be the same before the points will be strung.

String field

Optionally specify the name of the field containing values which define whether data points will be joined by a line.

Block Model

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

Run

Finally, click Run to begin the comparison.
