Planar Intersection

On the Wireframe tab, in the Generate Strings group: Click Planar Intersection to generate strings from wireframes sliced using an orthogonal or transform orientation, or from the section planes defined in a section control file.

As a result of the process, the slice strings are written to a nominated output file. Up to 10 wireframe attributes can also be written to the output file.

Input

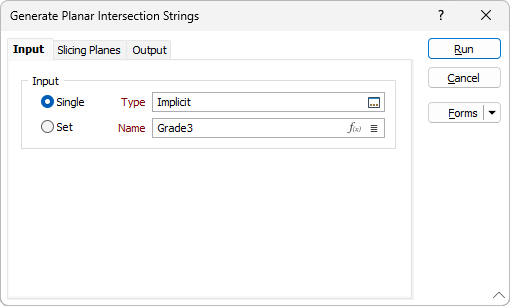

On the Input tab of the Generate Strings form, specify the Type and Name of the input wireframe.

To process a single wireframe, select the Single option, select the Type of the wireframe, and then the Name of a wireframe of that type.

To process multiple wireframes, expressions, wildcards and partial names may be used in the Name field to select multiple wireframes as an adhoc wireframe set. A right-click Preview option will perform a check of an expression before using that expression to generate an updated list of wireframes. Alternatively, you can click the Expression icon and use the Expression Editor to create, modify and validate the expression. When a name or wildcard is entered in the Name field, and the Expression button is selected, the name/wildcard will automatically be converted to a valid expression when opened in the editor.

To process the wireframes in a predefined wireframe set, select the Set option.

It is recommended that you Validate wireframes prior to using them in any process.

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

By design, the Forms button is not available for loaded Vizex layers (i.e. when opening the form set properties of a layer in the Vizex Layer Display pane). In Vizex, the Forms button is only available for new forms opened via the Home tab or the Vizex tab, in the Layer group (or by double-clicking on a form type node in the Vizex Layer Types pane).

Save and Save As

Click the Save button to save the changes you have made to the form set. Click Save As to save your changes as a new form set. Save As will default to the first available form set number.

Reset

Click Reset to clear the form of all values and reset the form to its default state.

Reset Tab

For tabbed forms, select Reset Tab to clear the active tab of all values and reset the tab to its default state - without making any changes to other tabs in the dialog.

Undo and Redo

Click Undo (CTRL + Z) to undo recent changes in the form. After an Undo, click Redo (CTRL + Y) to restore the last change that was undone.

Collapse

Collapse (roll-up) the form to preview a chart, or preview the results of an operation in Vizex, or obtain input values from Vizex, the Property Window, the File Editor, or the Plot Editor.

Use the drop-down button menu to save the changes you have made as a form set, load a form set, or reset the form as the default form set:

Slicing Planes

Output

Run

When you have specified the inputs and outputs to the process and defined the slicing planes, click Run to begin the process.
