Boolean Intersection (form)

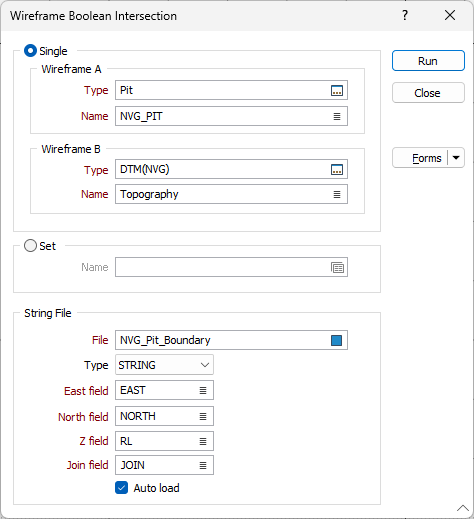

On the Wireframe tab, in the Generate Strings group: Select Boolean Intersection | Boolean Interaction (form) to create a String file that follows the line of intersection between two wireframes.

Wireframes A and B

To intersect multiple wireframes, select the Set option. When you define a wireframe set, you can specify wireframes of several types. Wildcards and a partial name in the Name input box may be used to select multiple wireframes.

To intersect single wireframes, select the Single option, select the type of the wireframes A and B, and then the name of a wireframe of each type. Wildcards and a partial name in the Name input boxes may be used to select multiple wireframes. This will load each wireframe as if it were a wireframe set.

See: Wildcards

String File

File

Double-click (or click on the Select icon) to select the name of a String file to which the results of the process will be written. To create a new file, right-click in the file input box and select New from the right-click menu.

East and North and Z fields

Specify the names of the fields in which Easting, Northing, and Z coordinates will be stored in the destination String file.

Join field

Specify the name of the field that will contain values that define whether data points will be joined by a line i.e. strung. If successive records have the same value in this field, then a line will join the points.

Auto load

Select this option to automatically load the generated strings in Vizex.

Boolean Intersection (interactive)

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

Run

Finally, click Run to generate the intersection strings.
