Sources and Destinations

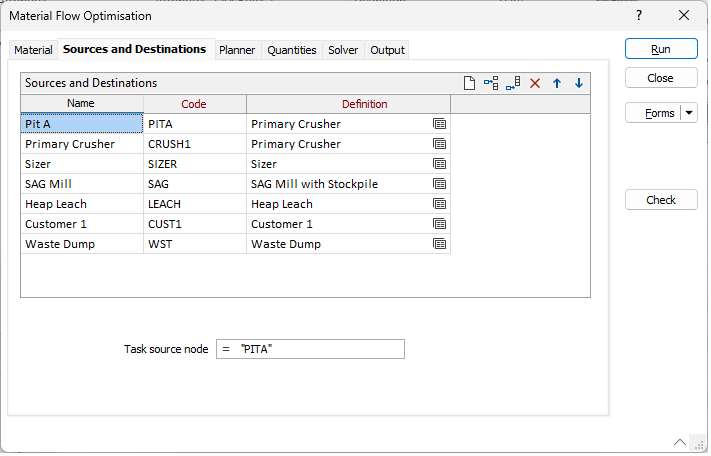

On the Sources and Destinations tab of the Material Flow Optimisation form, the grid is used to add sources and destinations for the material bins configured in Micromine Origin & Beyond.
Use the Name field to enter an identifying name for the source or destination to be added.
In the Code field, enter a unique identifying code for the source or destination. This field is mandatory.
Use the Definition column to define material flow source and destination nodes for each material bin. Click the Forms icon to select a saved form set. Right click (F4) to Edit the current form set, or select New to create a new form set.
For more information, see: Material Flow Network Node
