Material Bin Element Attributes

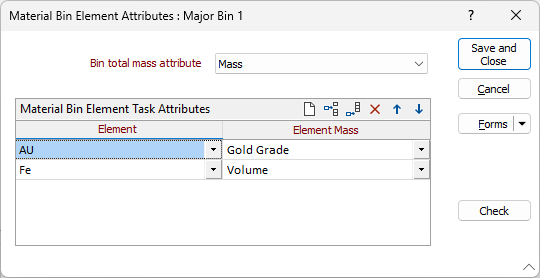

Use the Material Bin Element Attributes form to set task attributes for the material bins configured on the Material tab of the Optimise Material Flow form.

Bin total mass attribute

Use the drop-down control to select a total mass attribute for the material bin. This is the unit of measurement used to store the total mass of the stockpile.

Element

Use the Element column to set element attributes for the material bin. The elements you can select are configured on the Material tab of the Optimise Material Flow form.

Use the tools on the local toolbar to Manage the rows in the list.

Element Mass

For each element, use the drop-down control to select the attribute used to store the mass of the element.

The Task Attributes you can select are configured on the Scheduling | Schedule tab, in the Attributes group.

Use the tools on the local toolbar to Manage the rows in the list.

Save and Close

Click the Save and Close button to save the Material Bin definition and return to the Material Flow Optimisation form.
