Input

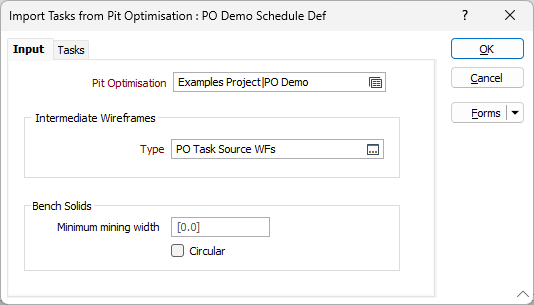

On the Input tab of the Import Tasks from Pit Optimisation form, select the Pit Optimisation set you want to import and specify a wireframe type for the intermediate wireframes created during task generation. Optionally, specify a minimum mining width for the generated bench solids.
Pit Optimisation
Click the Forms button to load a Pit Optimisation form set. To edit the form set, right-click and select Edit or press F4.
For more information, see: Optimisation Setup
Intermediate Wireframes
Nominate a Wireframe Type that will be used to store the intermediate wireframes created during the task generation process.
Bench Solids
Minimum Mining Width
This constraint is used to define a collection of blocks of the same classification that form a shape. Each bench must be able to accommodate the "shape" somewhere.
Circular
Select this check box to define the shape that each bench must support as Circular. The shape is a Square if this option is not selected.
If the extraction or the bench cannot support the shape, the process will combine extractions into a larger bench that can support the shape.
