Properties

On the Window tab, in the Panes group: Click Properties to hide/show the Properties pane.

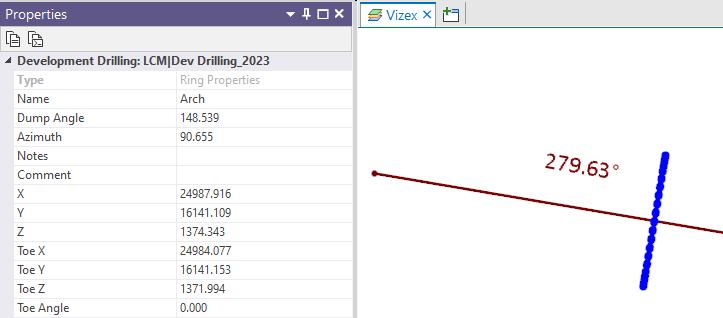

When you select a display object in Vizex, you can view and (sometimes) edit the properties of that object. The Type of the current layer and the Name of the current layer are also displayed at the top of the Properties pane.

When a Heading Design layer is the active layer, the following properties are displayed:

Azimuth	Reports the azimuth of tunnel (or vector normal to the plane of the round) on which the selected round is located.
Dump Angle	Reports the angle of inclination of a round plane.
Chainage	Reports the distance from the start of the tunnel to the selected round.
