Generic Solid/Vein Network Solid
Solid

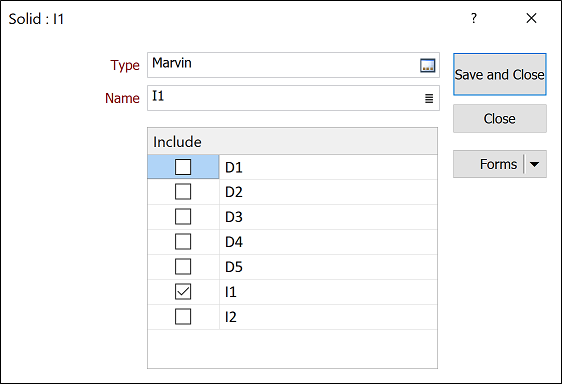

Use the Solid form to select the wireframe type and name of a Generic Solid.
Type
Double click (F3) or use the selection box in the Type field to select the existing wireframe type for the solid.
The modeller will assume that the supplied wireframes are at least as large as the extents of the Geology Model.
Name
Click the list box in the Name field to open the Select Wireframe Name form and Select the wireframe name from the list of available wireframes.
Include
The Include grid displays the Lithology codes written to the wireframe as an attribute. This enables the Geology Modeller to read the Lithology codes that the supplied solid represents and to create a better overall model.
To ignore any of the Lithology codes in the Include grid, deselect the code.
Vein Network Solids must include all saved Lithology codes. If you need to ignore any of the Lithology codes in the wireframe, you will need to use a Generic Solid.
