Extents
Use the Extents tab of the form to configure the minimum and maximum East, North and Z extents of the model.

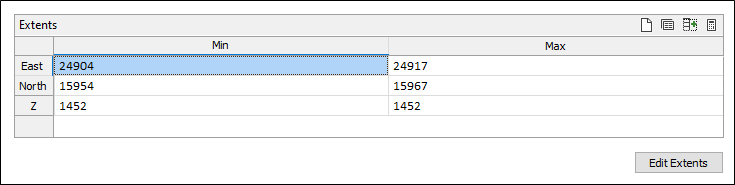

In the Extents grid, you can configure the Min (minimum) and Max (maximum) extent values for the East, North and Z directions.
The Extents toolbar provides tools to populateand clear the extents values:
-
The Clear button removes any data already entered in the grid.
-
Click the Autofill the Grid button to open the Autofill Extents form, which can be configured to provide extents data from selected sources.
-
The Auto calculate grid button is used to automatically calculate the Extent values based on the parameters you have specified in the form.
Edit Extents
When the grid definition is user defined, click the Edit Extents button to collapse the form and visually adjust the extents of the grid. Interactively adjusting the extents rectangle in Vizex, or in the Vizex Property Window, will update the values in the form.
See Edit Extents.
