User Defined Attributes

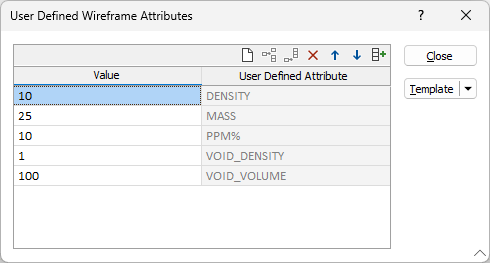

When you select Manage Attributes on the Wireframe tab, in the Manage group, you can specify any number of attributes for each type of wireframe, and add, delete or rename them.

The attributes you define might be things like Average Grades and Density.

When extruding wireframes from strings, for example, standard (Wireframe Name, Code, Colour) attributes and other user defined attributes can be mapped against the fields in the input String file. The user can also specify an associated default value for each of those attributes.

To edit the values of an attribute, click Properties on the Wireframe tab, in the Report group, and select the wireframe type you want to edit.

How you use these user-defined attributes is up to you. However, the method you adopt should support your processing requirements.

Template

The Template button is only available for Template Forms. Template Forms inherit saved or previously used values.

Click the Template button to select and open a saved form set template.

Load Template

Click the Load Template button to select and open a saved template to populate the fields of the form.

Save Template

Click the Save Template button to save the details of the current form as a template that can be loaded at a later time.

Manage

Click the Manage button to open the Template Forms manager which can be used to open, save, delete, import and export the template forms for your project.

Undo and Redo

Click Undo (CTRL + Z) to undo recent changes in the form. After an Undo, click Redo (CTRL + Y) to restore the last change that was undone.

Collapse

Collapse (roll-up) the form to preview a chart, or preview the results of an operation in Vizex, or obtain input values from Vizex, the Property Window, the File Editor, or the Plot Editor.
