Output

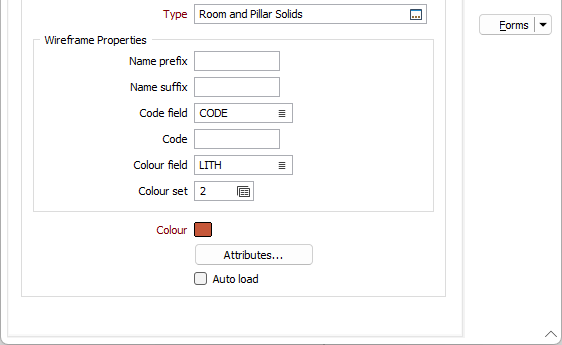

The Roof, Floor and Solid tabs of the Generate Horizons/Solids form provide control over the wireframes you want to output, and the names and the colours of the output wireframes.

Wireframe Type

Double-click (F3) to select a wireframe type.

Name Prefix and Suffix

Optionally, insert a prefix and append a suffix to the names generated from the Name field specified on the Input tab.

Code field

Optionally, select a field in the input file that will be used to populate the Code attribute of the output wireframes.

Code

Enter a character code that can be used to differentiate between this and other wireframes when a Code field has not been specified, or when values are missing in the Code field.

Colour field

Specify the name of a field which contains the values that will be used to colour-code the display.

You can choose to select colour values directly from the Colour field without selecting a Colour set. In this case, the values in the Colour field must be valid RGB, Hex, or Integer colour definitions.

Format	Example
R,G,B	89,169,215
HTML Hex	#59A9D7
Hex	0x59a9d7
int	5876183

Colour set

To map values in the Colour field to the colour values in a Colour set, double click (F3) to select the set that will be used to control the display colour. Right-click (F4) to create or edit a Colour set.

Colour

Double-click (F3) to select the colour that will be used when a Colour field or a Colour set is not defined - or when a value in the Colour field is either not valid or is not mapped in the Colour set.

Auto load

Select this option to load the generated output in Vizex. The default draw style for an auto-loaded wireframe is 3D Shaded.

Run

Click Run to begin the process.
