Output

On the Output tab of the Recode Seams form, choose an output destination and specify how the seams will be coded.

Recoded Seam Names

Use the following options to generate new codes for the seam blocks that are written to the output (or the input) Seam Block Model file.

Select the Generate Interburden check box to enable the Interburden Definition grid.
Optionally specify a Prefix and a Suffix for the blocks written to the output file.
Select the Seam Above and Seam Below check boxes to associate the blocks with the seams that lie immediately above and below.
When you are combining multiple seams into a single unit, typically a combination of the roof (highest) and floor (lowest) seam names are used as the unit name. To help differentiate between Seam above and Seam below, you can specify a Separator.

The Generate Interburden Blocks options in the Output tab

Modify input file

If the Modify input file option is selected, the results of the process will be written to the Input Seam Block Model file. If the option is not selected, double-click (F3) to select the name of an output Seam Block Model file.

Seam field

Enter or double-click (F3) to select the name of the field in the Output file (or the Input file) where the seam codes will be written.

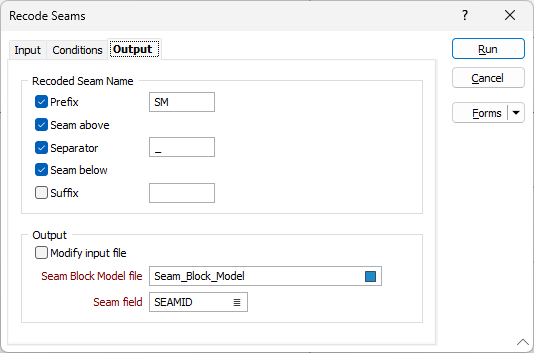

The Output tab of the Recode Seam form

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

Run

Click the Run button to begin the process.
