Lag

On the Scheduling | Schedule tab, in the Tasks group: Select Lag | Set to set the lag time between tasks. Alternatively, right-click on a link in the Gantt Chart and select Lag from the right-click menu.

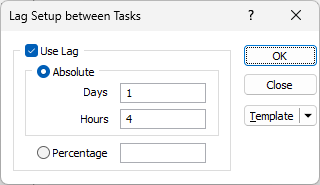

In the Lag Setup form, select the Use Lag check box option if you want to specify a lag time between the finish time of the predecessor task and the start time of the successor task.

You can choose to either set an absolute lag time in days and hours, or set a lag time which is a percentage of the duration of the predecessor task

Enter the required lag time in days and hours. When you specify a lag time, the schedule in the Gantt Chart is adjusted accordingly.

Since a minimum lag time has been specified, you cannot reduce the lag time by moving the successor task to an earlier position on the Gantt chart.

You can however, move the successor task so that the lag time between the predecessor task and the successor task is greater. This will not affect the minimum lag time that is set in the Lag Setup form.

Moving a successor task will never have any affect on the start time or the duration of a predecessor task. However, if you move a predecessor task, all successor tasks are adjusted accordingly.

Selecting the Remove Excess Lag option for a task, may have an affect on the start times of the tasks that are linked to it. However the lag times remain unaffected.

Remove Excess Lag

On the Scheduling | Schedule tab, in the Tasks group: Select Lag | Remove Excess to adjust the start times of all selected tasks to remove unwanted lag. Alternatively, right-click on a link in the Gantt Chart and select Remove Excess Lag from the right-click menu.

See: Minimise Lag

Template

The Template button is only available for Template Forms. Template Forms inherit saved or previously used values.

Click the Template button to select and open a saved form set template.

Load Template

Click the Load Template button to select and open a saved template to populate the fields of the form.

Save Template

Click the Save Template button to save the details of the current form as a template that can be loaded at a later time.

Manage

Click the Manage button to open the Template Forms manager which can be used to open, save, delete, import and export the template forms for your project.

Undo and Redo

Click Undo (CTRL + Z) to undo recent changes in the form. After an Undo, click Redo (CTRL + Y) to restore the last change that was undone.

Collapse

Collapse (roll-up) the form to preview a chart, or preview the results of an operation in Vizex, or obtain input values from Vizex, the Property Window, the File Editor, or the Plot Editor.
