Elements

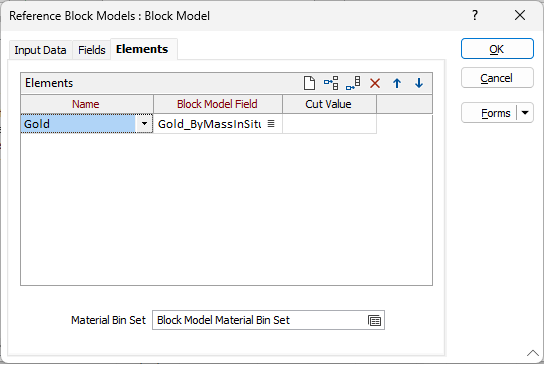

On the Elements tab of the Reference Block Model form, setup the profiles of the elements of interest and optionally specify the material bins for which attributes are to be calculated.

Name

Select the name of the element produced. This name is used to build names for fields in report data sources and attributes for saved wireframes.

Element fields in each reference block model must be mapped to the elements defined on the Elements tab of the Schedule Definition form.

Block Model Field

Select the field in the block model file from which the element grade for each block should be sourced.

Grade Units

The following units of grade are supported:

Description	ID	Label
Carats per Tonne	ct/t	ct/t
Grams per Tonne	g/t	g/t
Kilograms per Tonne	kg/t	kg/t
Pennyweights per Tonne	dwt/t	dwt/t
Ounces per Tonne	oz/t	oz/t
Troy ounces per Tonne	ozt/t	ozt/t
Pounds per Tonne	lb/t	lb/t
Troy pounds per Tonne	lbt/t	lbt/t
British thermal units per Pound	Btu/lb	Btu/lb
Kilojoules per Kilogram	kJ/kg	kJ/kg
Megajoules per Kilogram	MJ/kg	MJ/kg

Mass Units

The following units of mass are supported:

Description	ID	Label
Milligrams	mg	mg
Grams	g	g
Carats	ct	ct
Kilograms	kg	kg
Tonnes	t	t
Kilotonnes	kt	kt
Megatonnes	Mt	Mt
Grains	gr	gr
Poundss	lb	lb
Ounce	oz	oz
Pennyweights	dwt	dwt
Short tons	shtn	sh tn
Long tons	ltn	l tn
Troy ounces	ozt	ozt
Troy pounds	lbt	lbt

Cut Value

Enter a Cut value. If the value in the Block Model field is higher than the Cut value, the process uses the Cut value instead.

Material Bin Set

Optionally, specify the material bins for which attributes are to be calculated. Press F4 (or choose Edit from the right click menu) to open the Material Hierarchy window. For more information, see: Material Bins
