Renumber Rings

On the Mining | Ring Design tab, in the Ring group: Click Renumber Rings to renumber the rings along the selected drive.

Using the drop down menu for the Renumber Rings option, you can renumber rings in a ascending or descending order.

Renumber Rings from Start

1. On the Mining | Ring Design tab, in the Ring group: Click Renumber Rings from Start to renumber the rings along the selected drive in ascending order.



   If a ring is not currently selected, you will be prompted to Select drive(s) or rings to renumber.



   Alternatively, you can Digitise the required object/s using the button in the Selection Assistant toolbar. The Selection Assistant will close, providing access to the tools used to create the object.

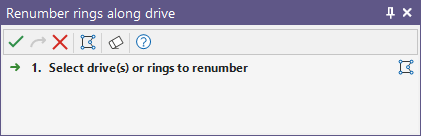

2. Click Accept in the Renumber rings along drive Selection Assistant.

   The selected drive(s) or rings will be renumbered in Ascending order.

Renumber Rings from End

1. On the Mining | Ring Design tab, in the Edit group: Click Renumber Rings from End to renumber the rings along the selected drive in descending order.



   If a ring is not currently selected, you will be prompted to Select drive(s) or rings to renumber.



2. Click Accept in the Renumber rings along drive selection assistant.

   The selected drive(s) or rings will be renumbered in Descending order.
