Generate Round Wireframes

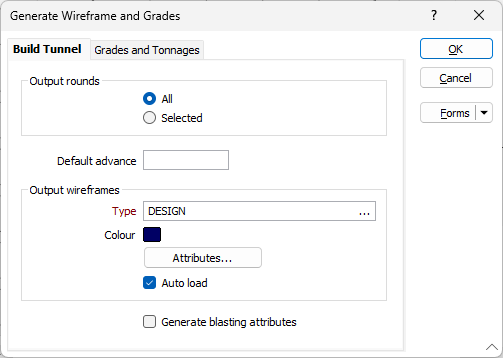

On the Build Tunnels tab of the Generate Round Wireframes form, select the rounds that will be used to build the tunnel wireframes.
Output Rounds
Select All to generate tunnel wireframes from all the rounds in the design. Alternatively, if you would like to generate wireframes for the rounds you have Selected in Vizex, select that option.
Default Advance
Enter an Advance per round value (in grid units). This is the distance advanced in the tunnel after blasting. This default value will be applied to any rounds that do not have a specified Advance value.

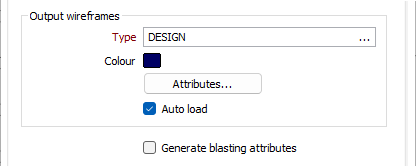

Output Wireframes
Before you can generate wireframes and save them, you will need to specify their type and enter standard and (where appropriate) user-defined attributes for that type.
Double click (F3) or click the ellipsis in the Type field to select a wireframe type. To create a new wireframe type, press F5 or right-click and select New Type.
Attributes
To manage User Defined Attributes for the selected wireframe type, click the Attributes button.
Auto load
Select this option to load the generated output in Vizex. The default draw style for an auto-loaded wireframe is 3D Shaded.
