Options

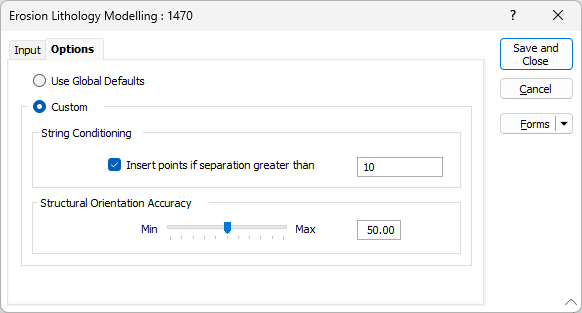

The Options tab of the Erosion Lithology Modelling form contains options for String Conditioning and/or Structural Orientation Accuracy for your model.
You can select the Global Defaults option to use the global lithology defaults, or select Custom to define the settings for this model.
String Conditioning
Insert points if separation greater than
Select the option to specify a maximum separation between points value in order to insert points where necessary to make the segmentation of the string more uniform. As a result, a wireframe generated from the string will be smoother.
Structural Orientation Accuracy
Use the slider or enter a value directly in the field to set the required accuracy of structural orientation for the surface map. The higher the value, the more accurate the structural orientation, but the more time and resources the modelling will require.
Click the Save and Close button when the lithology Modelling form is completed, to return to the Surface Map.
