Add Slot Ramp

On the Mining | Pit Design tab, in the Ramp group: Click Add Slot Ramp to add a slot ramp road to a selected road segment in the pit design.

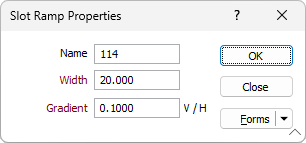

You can set the slot ramp parameters in the Slot Ramp Options form whenever you add a slot ramp.

The camera will be placed in Plan View when you submit the form, making it easier to create the digitised string.

Name

Enter an identifying name for the slot ramp.

Width

Specify the width of the slot ramp.

In order to end up with an accessible road, when you set the width, you may need to take into account the Berm width (if Berm access is enabled as part of your design parameters).

Gradient

Specify a gradient value. This value is measured in the gradient unit configured in Setup.

Note: If a road you add to the design intersects with another road, a warning will be displayed in the Output Console, but the new road will not be stopped.

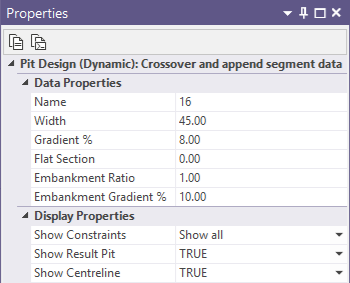

If you select a Slot Ramp in your design you can view and edit the data and display values for the selection in the Properties pane.

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

OK

Click OK to add the slot ramp to the design.
