Adjust to Topo

On the Mining | Blast Design tab, in the Modify group: Select Adjust | Adjust to Topo to drape blastholes onto a surface that lies above or below the collars of the holes, in the current plane of the view.

The Draping process will run automatically provided that the blastholes and the wireframe to be used as inputs to the process are selected in the display. If you have not already selected the collars you want to drape, or the wireframe you want to drape onto, you will prompted to do so by the Selection Assistant.

Alternatively, you can Digitise the required object/s using the button in the Selection Assistant toolbar. The Selection Assistant will close, providing access to the tools used to create the object.

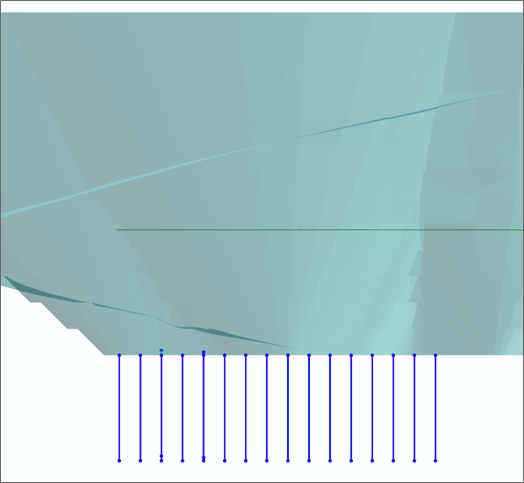

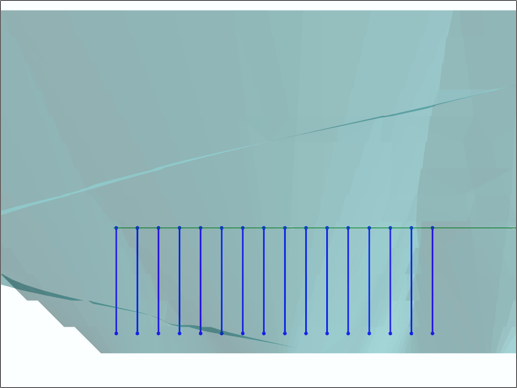

Before:	After:

See Also: Adjust to Wireframe and Adjust to Elevation
