3. Misc Fields step

In the Misc Fields step set block properties such as block type, solid volume, depletion, and location

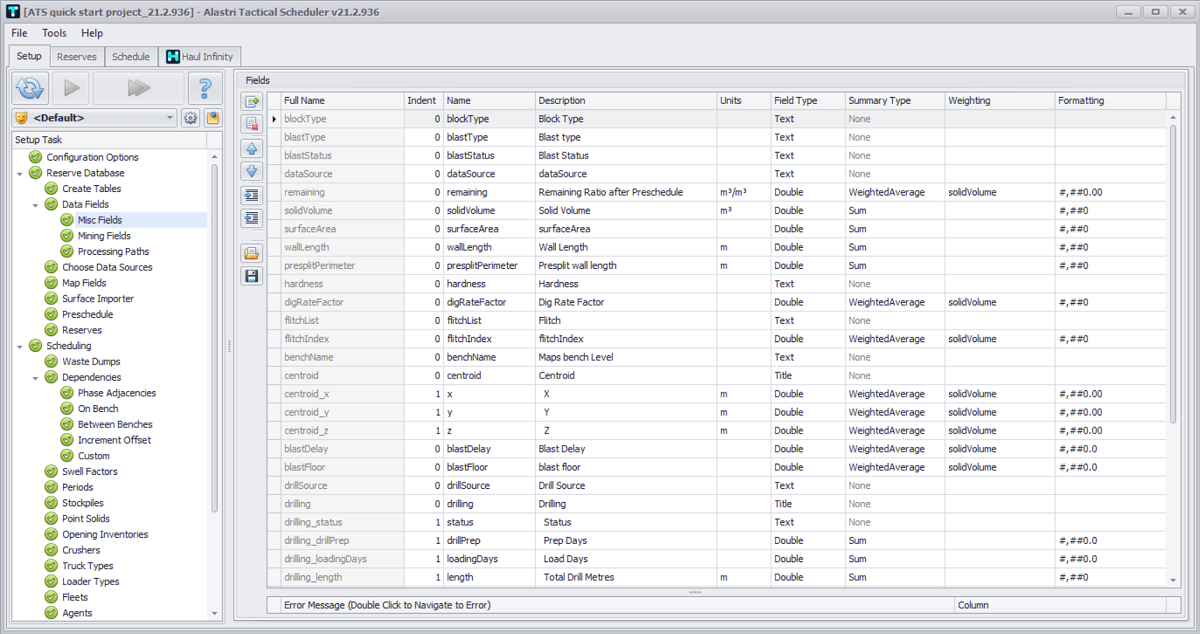

Click the folder icon on the side and import the sample “.openfields” file to auto-populate the Fields table (or configure manually from the side button menu).

Misc Fields table

Indent	Name	Description	Units	Field Type	Summary Type	Weighting	Formatting
0	blockType	Block Type		Text	None
0	blastType	Blast type		Text	None
0	blastStatus	Blast Status		Text	None
0	dataSource	Data Source		Text	None
0	remaining	Remaining Ratio after Preschedule	m³/m³	Double	WeightedAverage	solidVolume	#,##0.00
0	solidVolume	Solid Volume	m³	Double	Sum		#,##0
0	surfaceArea	Surface Area		Double	Sum		#,##0
0	wallLenght	Wall Length	m	Double	Sum		#,##0
0	presplitPerimeter	Presplit Wall length	m	Double	Sum		#,##0
0	hardness	Hardness		Text	None
0	digRateFactor	Dig Rate Factor		Double	WeightedAverage	solidVolume	#,##0
0	Flitch	Flitch		Text	None
0	flitchIndex	Flitch Index		Double	WeightedAverage	solidVolume	#,##0
0	benchName	Maps Bench Level		Text	None
0	centroid	Centroid		Title	None
1	x	X	m	Double	WeightedAverage	solidVolume	#,##0.00
1	y	Y	m	Double	WeightedAverage	solidVolume	#,##0.00
1	z	Z	m	Double	WeightedAverage	solidVolume	#,##0.00
0	blastDelay	Blast Delay		Double	WeightedAverage	solidVolume	#,##0.00
0	blastFloor	Blast Floor		Double	WeightedAverage	solidVolume	#,##0.00
0	drillSource	Drill Source		Text	None
0	drilling	Drilling		Title	None
1	status	Status		Text	None
1	drillPrep	Prep Days		Double	Sum		#,##0.00
1	loadingDays	Load Days		Double	Sum		#,##0.00
1	length	Total Drill Metres	m	Double	Sum		#,##0
1	drilledPct	Drilled Metres Percentage	%	Double	Sum		0.0%
1	stemming	Stemming	t	Double	Sum		#,##0
1	dets	Dets	no.	Double	Sum		#,##0
1	bore	Does a bore exist		Text	None
1	gc	grade control drilling required		Title	None
2	required	is GC drilling required		Text	None
2	metres	grade control metres		Double	Sum		#,##0
0	explosives	Explosives reporting		Title	None
1	anfo	ANFO		Title	None
2	tonnes	Tonnes of ANFO	t	Double	Sum		#,##0
2	an	AN	t	Double	Sum		#,##0
2	fo	Fuel Oil	t	Double	Sum		#,##0
