11. On Bench step

Set dependencies between blocks on a bench/lift. There are options to use automatic dependencies, manually created dependencies, or a combination of the two.

Overview

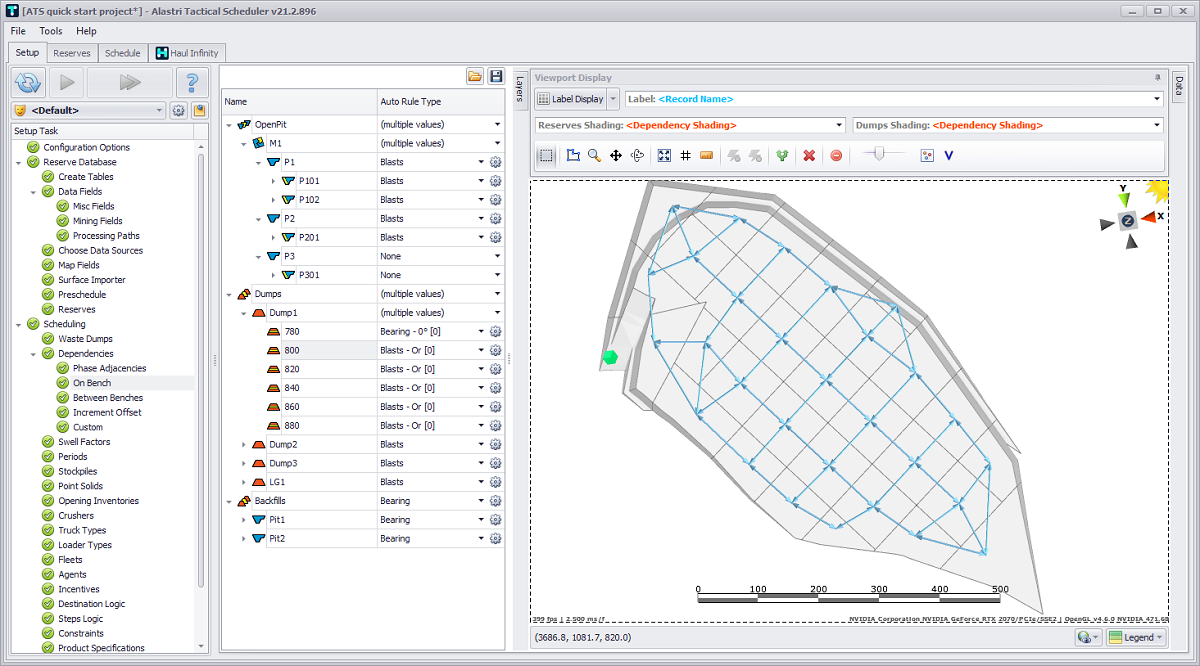

Set "OR" dependency type in Auto Rule Type for Dumps lifts (Blasts - Or [0]).

Note, that “OR” dependency is not automatically displayed in the Auto Rule Type drop-down.

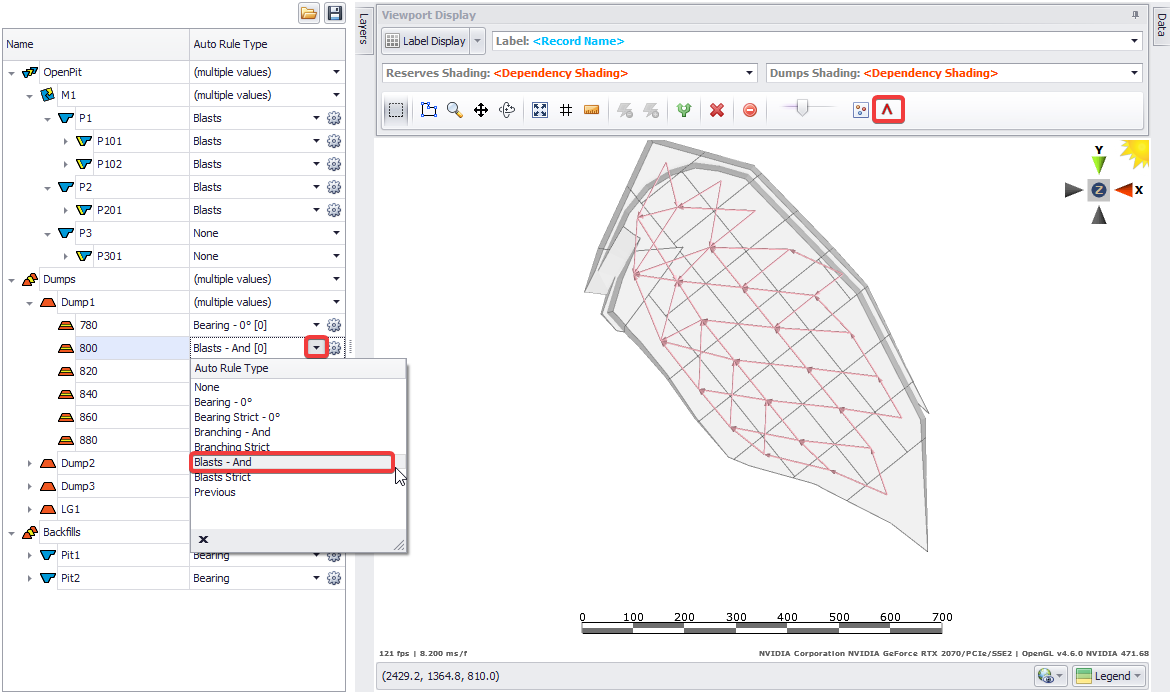

  1. Using Auto Rule Type column drop-down select “Blasts” as dependency for Dump1.

  2. Extend Dump1 tree to its Lifts levels.

  3. For each Lift select “AND” dependency from the drop-down.

  4. In the Viewport Display area you’ll see selected Lift with pink arrows, showing “AND” auto rule type dependencies.

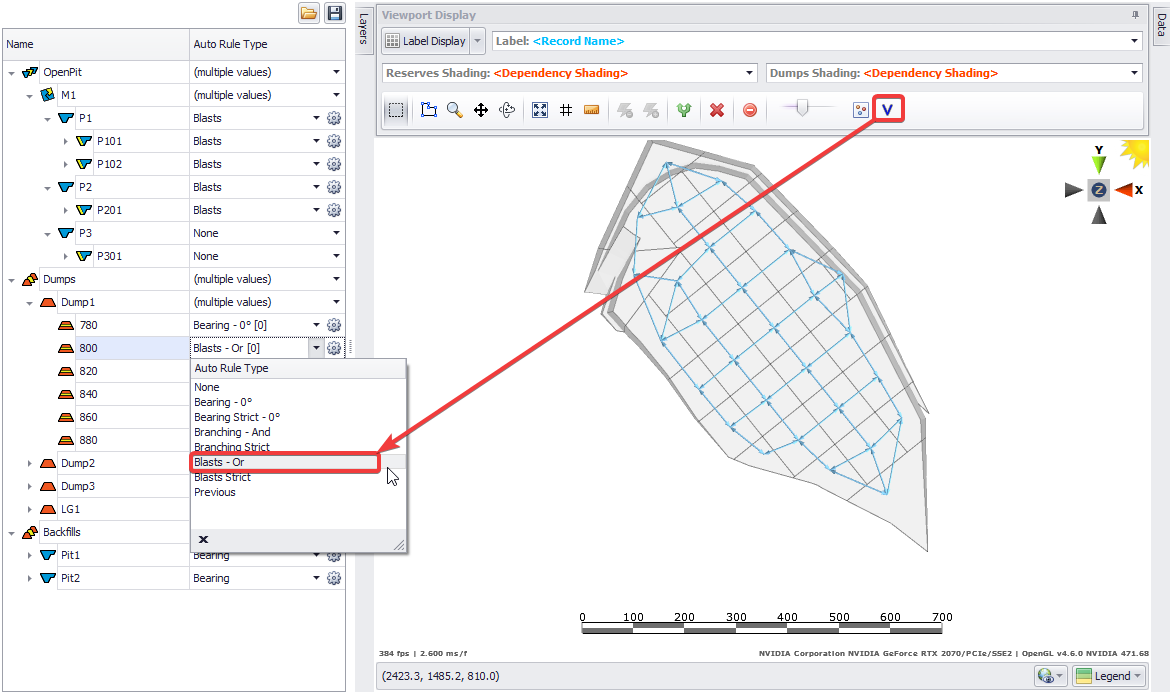

  1. Toggle upwards red Dependency Type arrow (last icon) to switch from “AND” to “OR” dependencies type.

  2. This icon will become pointing downwards and dependencies arrows on a Lift will be shown in blue.

  3. Now you can see “Blasts - Or” dependency type in this Lift drop-down.

  1. Repeat for other Dumps Lifts.

  • Dependencies will be created blasting out from the start point(s) created by the user,

  • More than one block will be available at once.

  • Dependencies for trim shots are automatically created.
