26. Product Specifications step

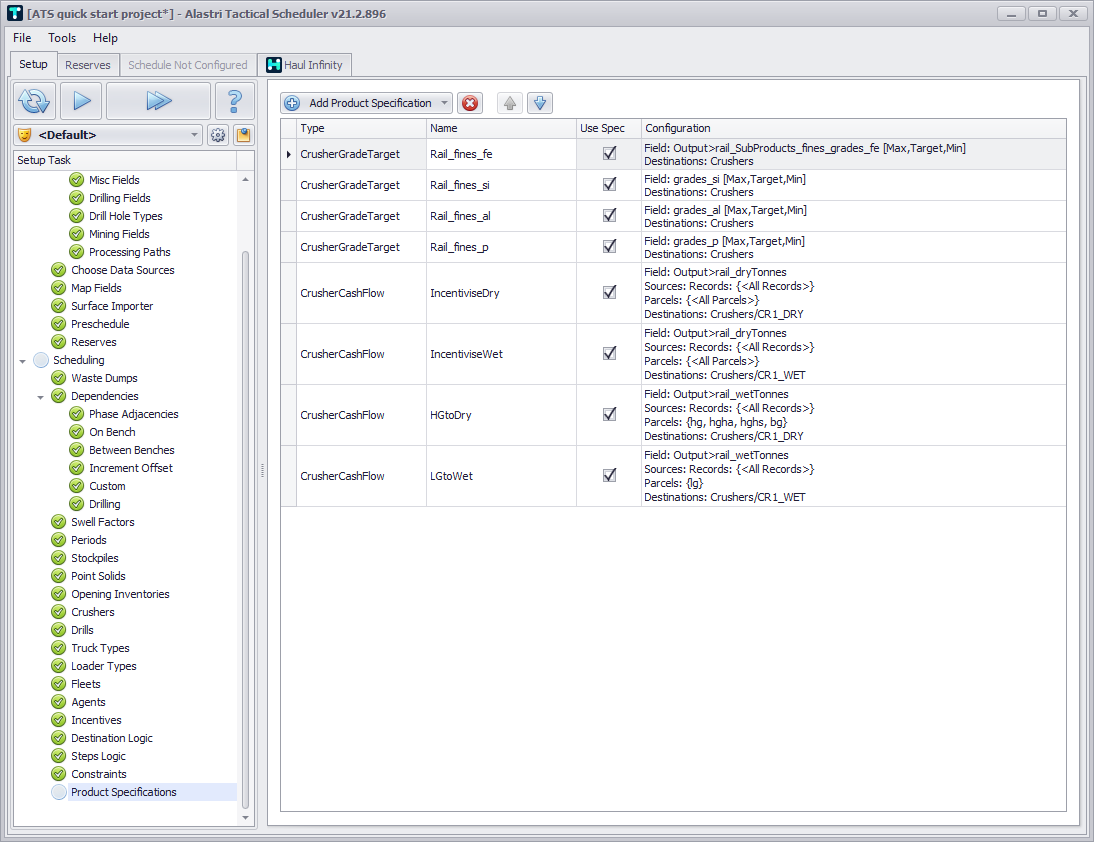

The Product Specifications step allows the user to define the rules of the optimization. Each rule becomes a new row in the Calendar.

Overview

To add crusher grade target specification:

  1. In the Product Specifications step press the Add Product Specifications button and select “Crusher Grade Target” option from the drop-down.

  1. Rename it to “Rail_fines_fe”.

  2. Checkbox in the Use Spec column should stay ticked.

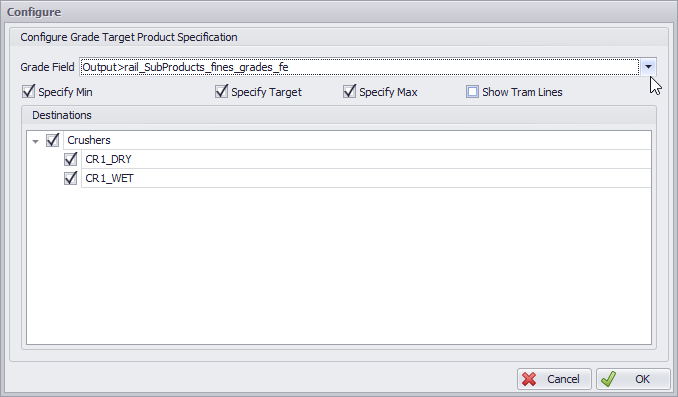

  3. Click anywhere in the Configuration field area to open Configure window.

  1. Open the Grade Field drop-down, scroll down and select “Output>rail_SubProducts_fines_grades_fe” option.

  2. Flag Specify Min, Specify Target and Specify Max checkboxes.

  3. Select CR1_DRY and CR1_WET crushers as destinations.

  4. Click OK to confirm.

Detailed description of each of the Product Specification types see Product Specifications.

Exercise:

Add Crusher Grade Targets type Product Specifications for Rail_fines_si, Rail_fines_al and Rail_fines_p, and Crusher Cash Flow type Product Specifications for IncentiviseDry, IncentiviseWet, HGtoDry and LGtoWet.
