18. Truck Types step

Every project must have at least one truck type, which is used to calculate fleet numbers, engine hours and fuel burn.

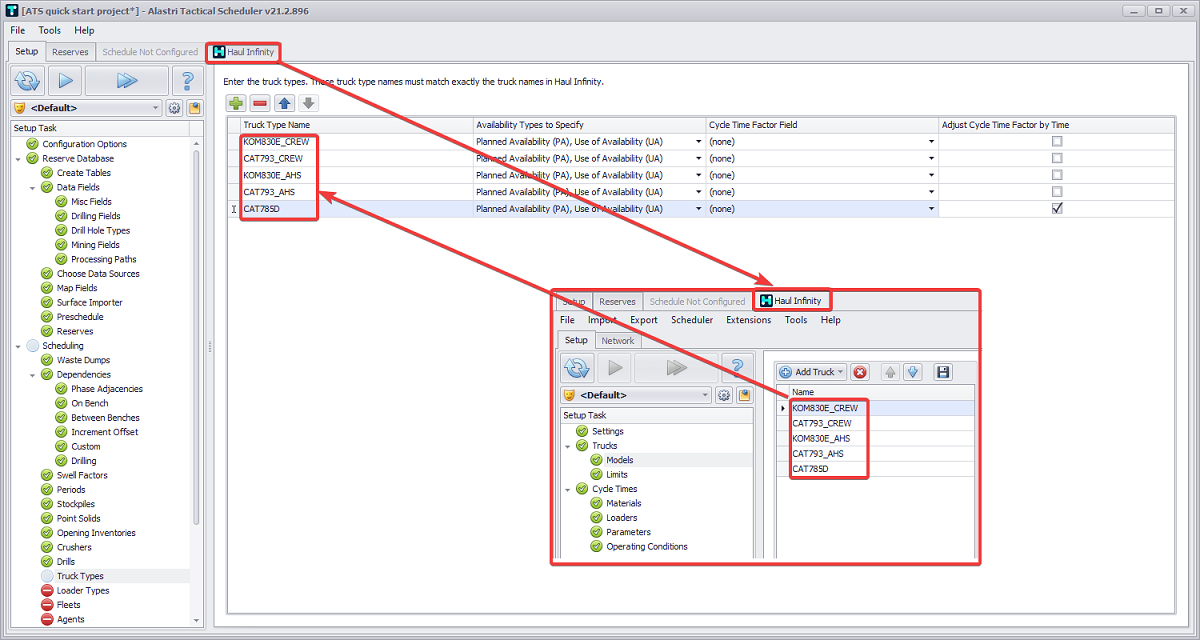

  1. Click thegreen plus button to add a new Truck Type.

  2. Rename it to match the Haul Infinity name.

Truck definitions must be present in Haul Infinity in order for the scheduler to reference them. Instructions on how to add Trucks Types in Haul Infinity see Truck Models.

  1. Select from Availability Types to Specify column drop-down “Planned Availability” and “Use of Availability” types for each truck (Availability types are explained in: Agent TUM Calculations.)

  2. Flag in Adjust Cycle Time Factor by Time introduces a new row in the calendar, so cycle times can be factored faster or slower in different periods (ie. wet weather period).
