23. Destination Logic step

Destination Logic describes the resting place of material at the end of the period.

Each rule lists the destinations for transactions that match its filter criteria:

  • Code Filters: may differentiate destinations by some custom logic.

  • Period Filters: may differentiate pre- and post- plant commissioning.

  • Agent Filters: may differentiate autonomous and crewed tipheads.

  • Source/Destination Filters: may differentiate ore and waste sources/destinations by pit.

Set Dependency Logic for High Grade Expit

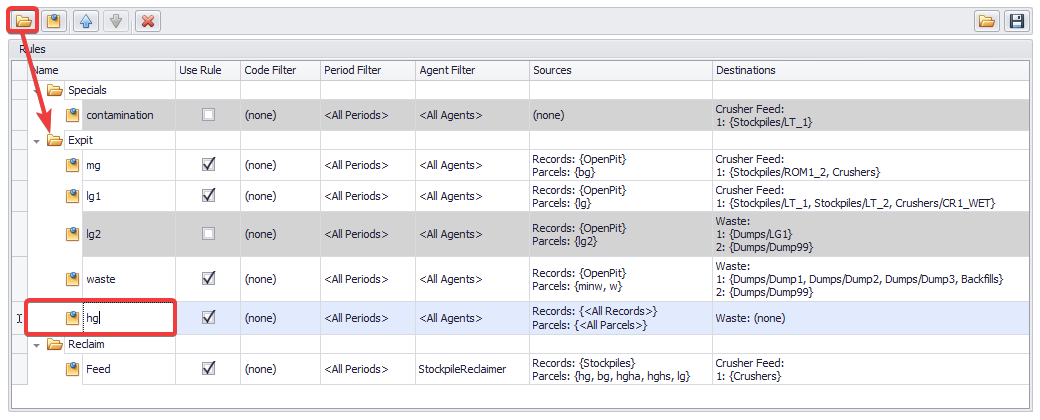

  1. Click the folder icon to add a new rules folder.

    1. Name it “Expit”.

  2. Click the clipboard icon to add a new node.

    1. Name it “hg”.

Create hg expit destination rule

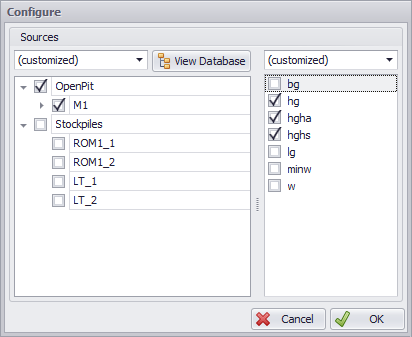

3. Click in the Sources field to open the Configure window.

  • Untick Stockpiles checkbox to show only Open Pit as a source.

  • For parcels, tick “hg”, “hgha”, “hghs” to include in the rule.

  • Click OK.

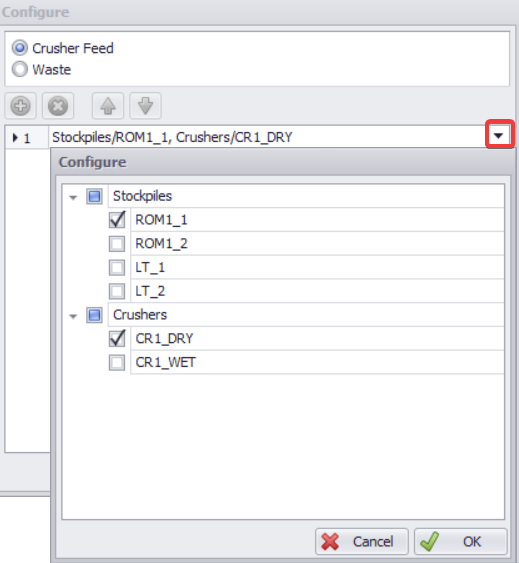

  1. Click on the Destinations field to open the Configure window.

  2. Set a destination to the Crusher Feed.

  3. Click theblue plus icon to add a crusher feed and select from its drop-down “ROM1_1” stockpile and “CR1_DRY” crusher. Click OK.

New Destination Rule for High Grade Expit has been added.

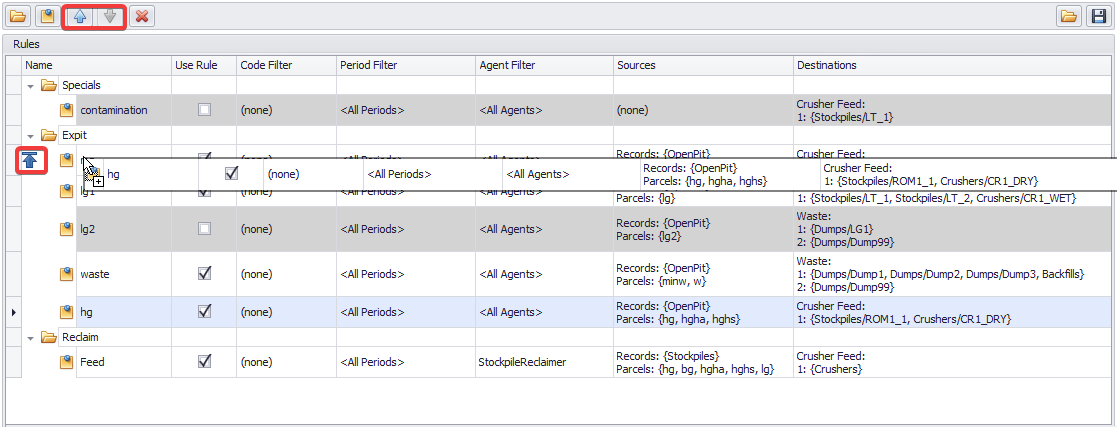

  1. Use blue arrows icons from the toolbar to move “hg” rule to the top in the Expit list.

  • alternatively, drag and drop it in the location pointed by the blue arrow.

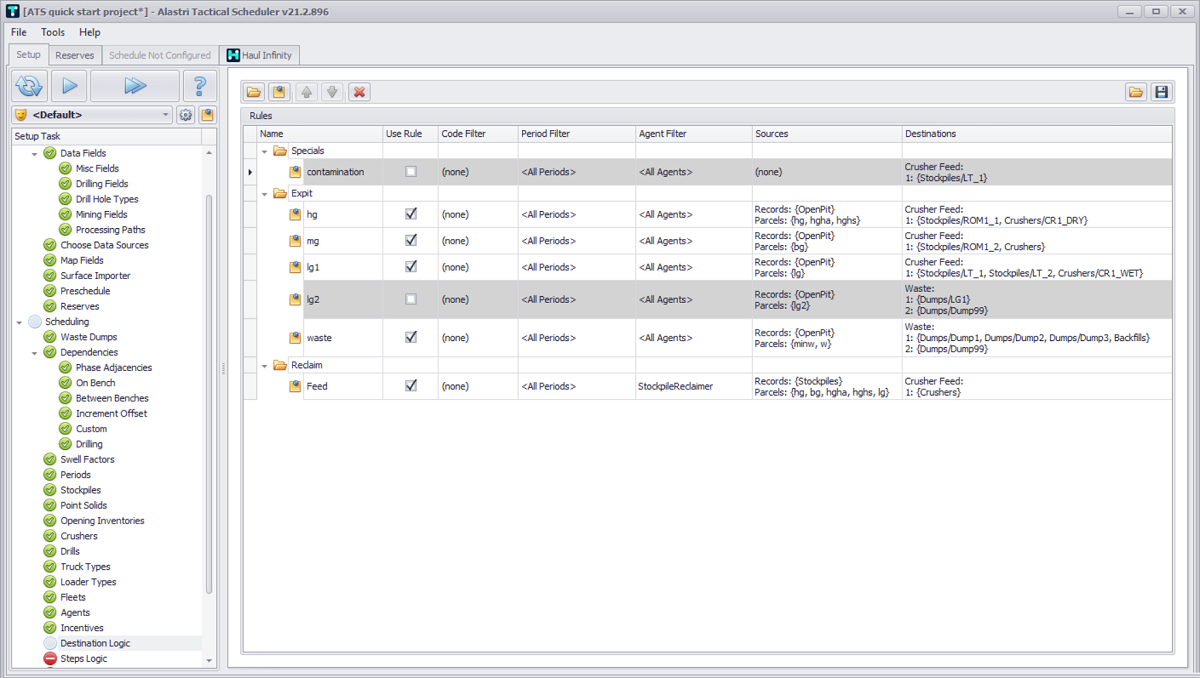

Set destination logics for mg, lg1, as well as for waste, contamination and reclaim as shown below.
