Rename

On the Wireframe tab, in the Manage group: Select Manage Wireframes | Rename to rename the selected wireframe object.

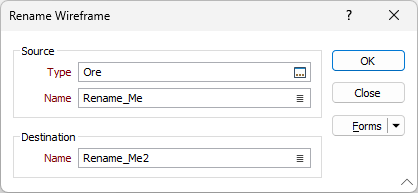

In the Rename Wireframe form:

1. Double-click in the Source Type box to select the type you want to rename.

2. Double-click in the Source Name box to select a wireframe of the type you have selected.

   Wireframe names are case sensitive. See: Wireframe Names

3. Enter a name, or double-click in the Destination Name box to select the name of a wireframe.

   If you choose the name of an existing wireframe, you will be prompted to overwrite it or cancel the process.

4. Click the OK button.



You can also rename a wireframe in the Wireframe Manager:

• On the Wireframe tab, in the Manage group: Click Wireframe Manager. Select a wireframe and then click the Rename button (or right-click and select Rename) to rename the wireframe.
