Assign

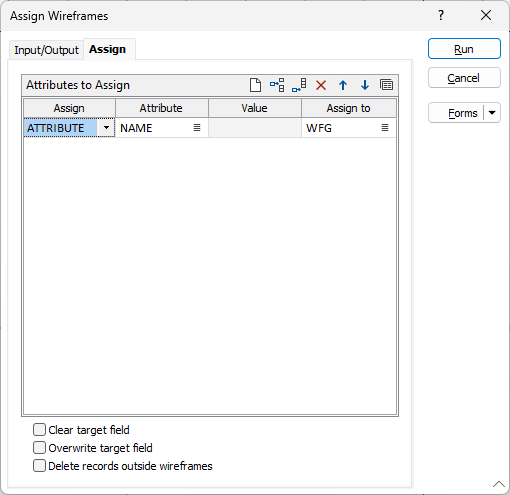

On the Assign tab of the Assign Wireframes form, define how the attributes will be assigned to the data file.

Attributes

In each row of the table enter or select (F3) an Attribute name and the name of the Assign To field to which it will be assigned. If fields do not exist, they are automatically created (REAL, 20, 3).

Use the buttons on the local toolbar to Manage the rows in the list.

Clear target and Overwrite fields

Select Clear target fields and Overwrite target field according to how you want to deal with values already in the fields of the target file (the file to which you will assign wireframe attributes). For more information, refer to the Clear target field and Overwrite target field topic.

Delete records outside wireframes

(Optional) Select this option to delete those records in the data file that fall outside the extent of the wireframes.

Run

Click Run to run the function.
