New DTM

On the Grid / DTM tab, in the DTM Create group: Click New DTM to generate a Digital Terrain Model (DTM) / topographic surface wireframe from a file containing data such as contours, spot heights, point clouds, LiDAR data or surveyed data points.

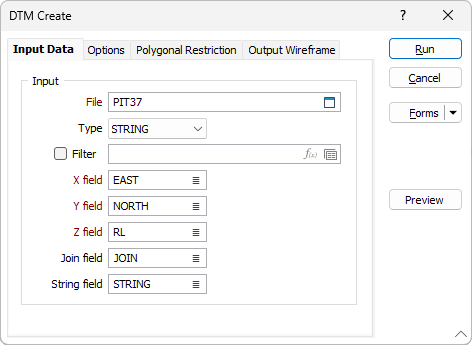

Input

File

Enter the name and type of the Input file. This can be any file containing points with X, Y and Z coordinates. If required, define a filter to selectively process the records.

East and North and Z fields

Double-click to specify the names of the fields in which the Easting, Northing and Z coordinates are stored.

Join field

In forms that require polylines as an input, the values in this field define whether the data points in the input file should be joined by a line. If successive records have the same value in this field, a line will join the points. If two-factor topology is required, the values in a String field may also be used to segment the lines.

String field

In most forms, the String field is an optional generic attribute used to store a secondary input such as a code. Traditionally, this field has also been used with the Join field to define whether data points should be joined by a line, or strung, hence the name.

Forms

Click the Forms button to select and open a saved form set, or if a form set has been loaded, save the current form set.

Run

When you have set processing options, constraints, and output parameters, click Run to run the function.
